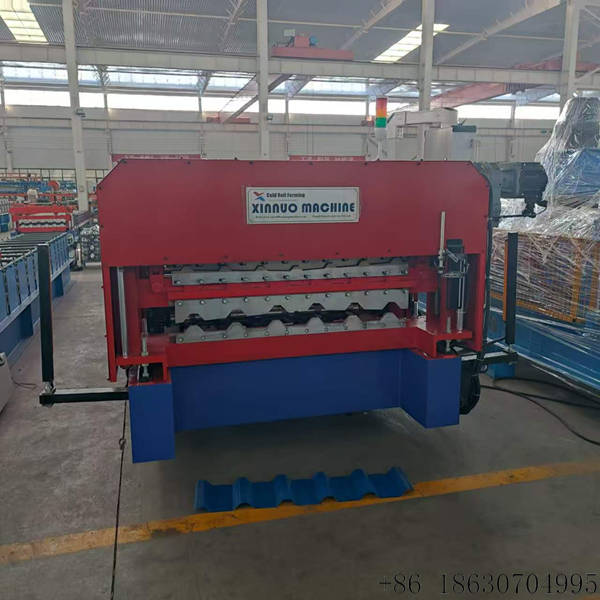

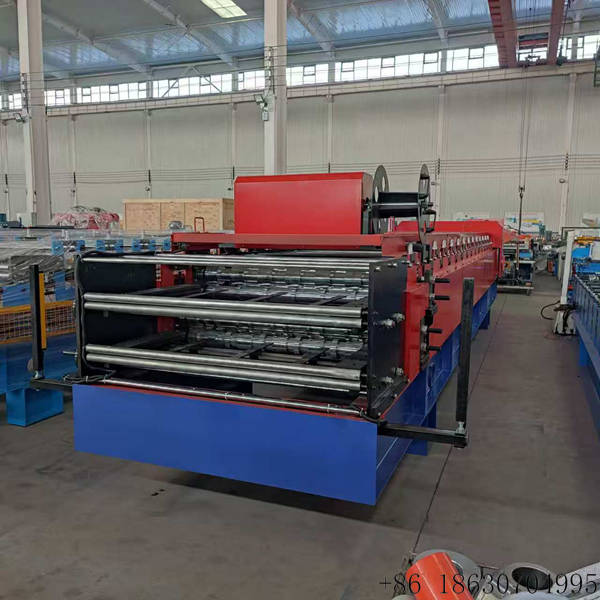

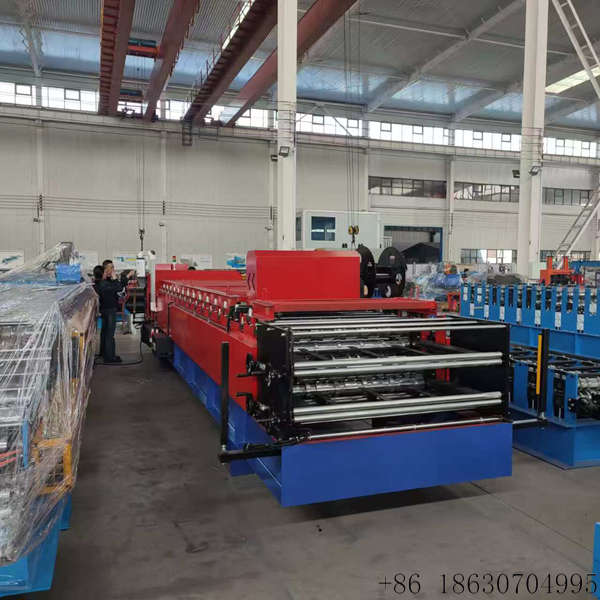

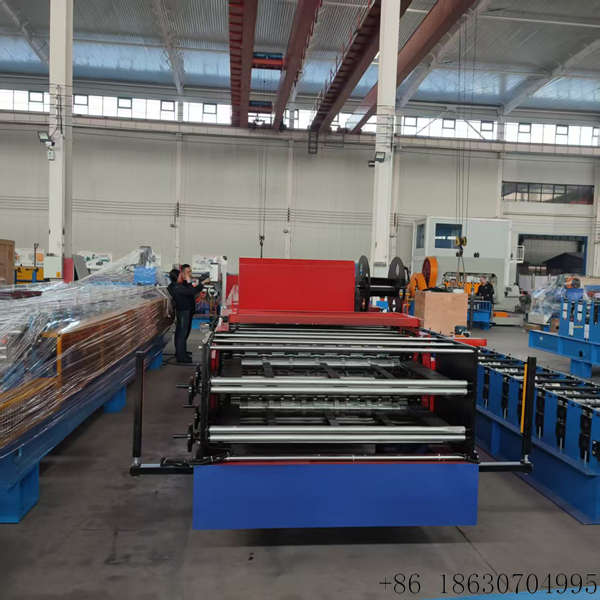

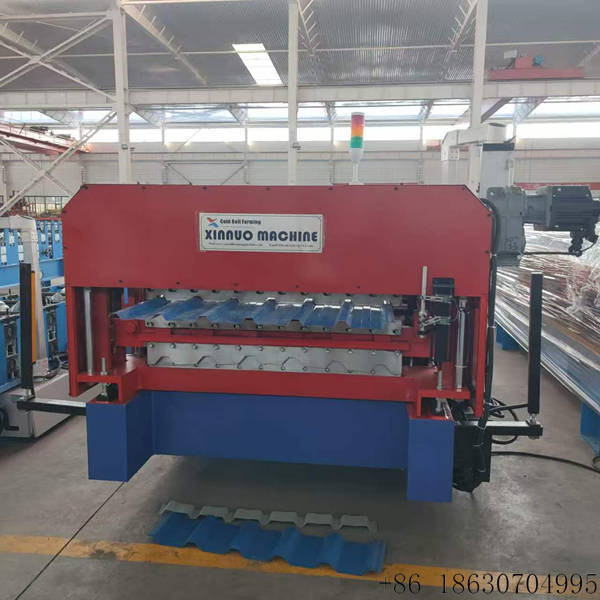

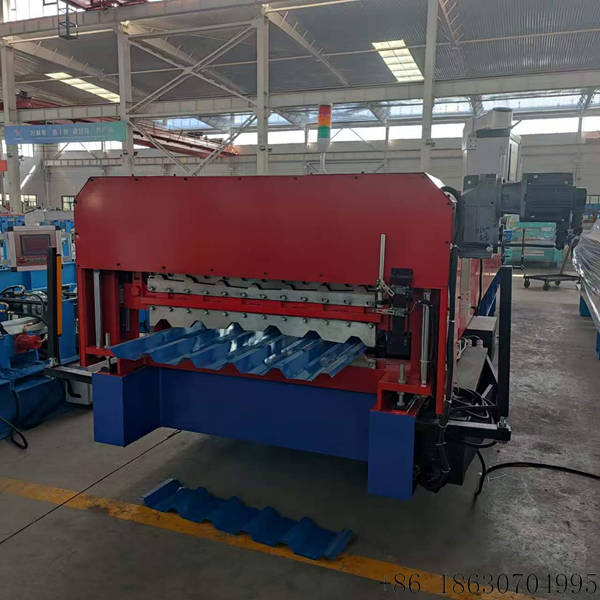

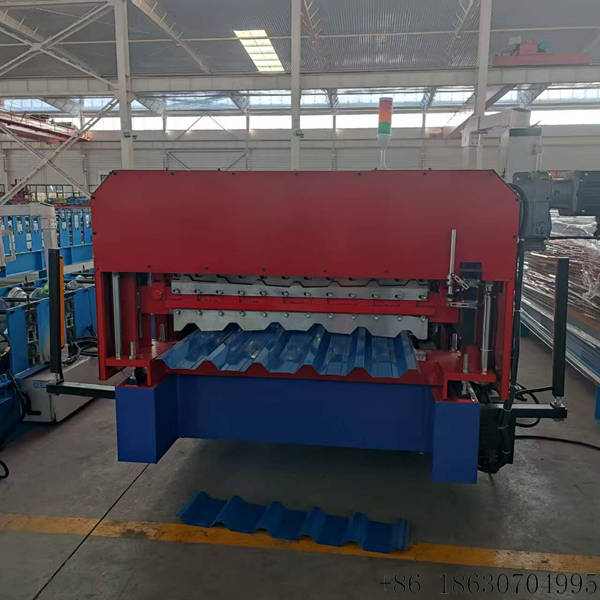

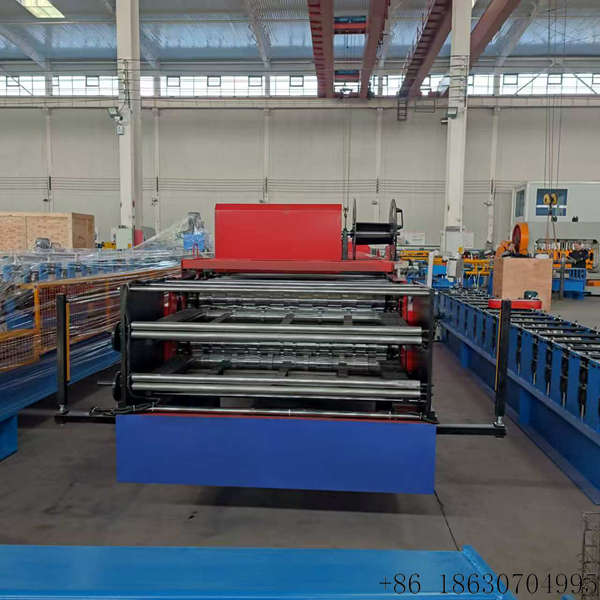

Xinnuo 980+1020 Double Layer Cold Roll Forming Machine

As a professional cold bending equipment manufacturer with over 30 years of experience, Hebei Xinnuo Roll Forming Machinery Co., Ltd. launches the 980+1020 Double Layer Metal Roof Panel Roll Forming Machine, a high-efficiency and cost-saving solution for construction and steel structure projects worldwide.

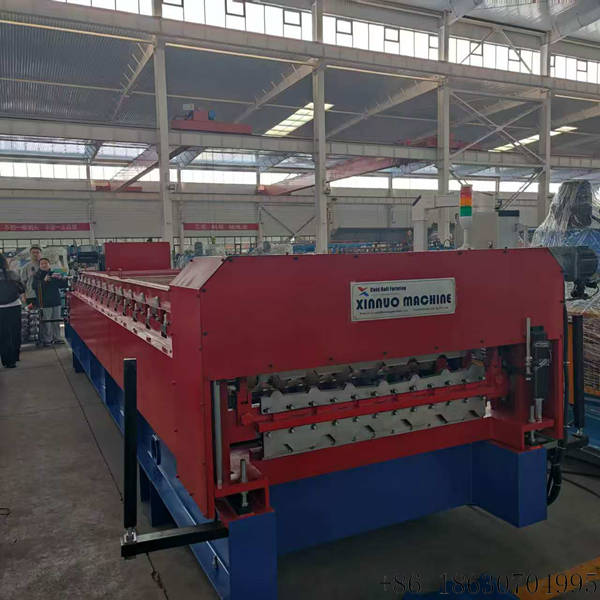

This dual-layer integrated machine is designed to produce two types of panels simultaneously: 980mm wall panels and 1020mm roof panels, which greatly saves workshop space and reduces procurement costs. It is applicable to color steel coils, galvanized steel plates and aluminum-magnesium-manganese plates with a thickness of 0.3-0.8mm, meeting the diverse needs of prefabricated houses, industrial workshops and commercial buildings.

Equipped with advanced PLC touch screen automatic control system, the machine realizes full-automatic operation—from feeding, forming to fixed-length cutting, all can be completed with one click. The automatic hydraulic cutting ensures high precision, with a length error of only ±2mm, ensuring consistent and qualified products for mass production.

In terms of structure, the machine adopts 250# H-steel integral welding frame, combined with φ70mm solid quenched main shaft and high-quality 45# steel rollers plated with hard chrome, which is wear-resistant, corrosion-resistant and scratch-proof, ensuring smooth plate forming without creases. With a total power of 7.5KW and a forming speed of 8-12m/min, it can efficiently meet the needs of large-volume production.

With a compact overall size of 6800×1350×1550mm and a weight of about 3800kg, the machine is easy to install and move, suitable for on-site construction operations. We also provide customized services, such as frequency conversion speed regulation, widened body and heavy-duty version, to meet your specific production requirements.

Backed by Xinnuo’s professional R&D team and global after-sales service, this machine has been exported to more than 80 countries and won wide recognition from customers. Choose Xinnuo’s 980+1020 Double Layer Roll Forming Machine to improve production efficiency and reduce operational costs.
