Special Shaped PV Solar Bracket Roll Forming Machine

Manufacturer: Hebei Xinnuo Roll Forming Machinery Co., Ltd. | Core Keyword: Solar Bracket Roll Forming

Machine Manufacturer

As a professional Solar Bracket Roll Forming Machine Manufacturer, Hebei Xinnuo Roll Forming Machinery Co., Ltd. develops customized special shaped photovoltaic support forming equipment for global solar energy manufacturers. This PV bracket roll forming line is designed for producing irregular U, C, Z and customized special section solar mounting frames, widely applied in ground photovoltaic power stations, rooftop solar projects and distributed solar energy systems. High return on investment with fast payback: With high production capacity, low reject rate, minimal labor demand and low energy consumption, the overall operation and maintenance costs are significantly reduced, and the equipment investment can usually be recovered within about one year.

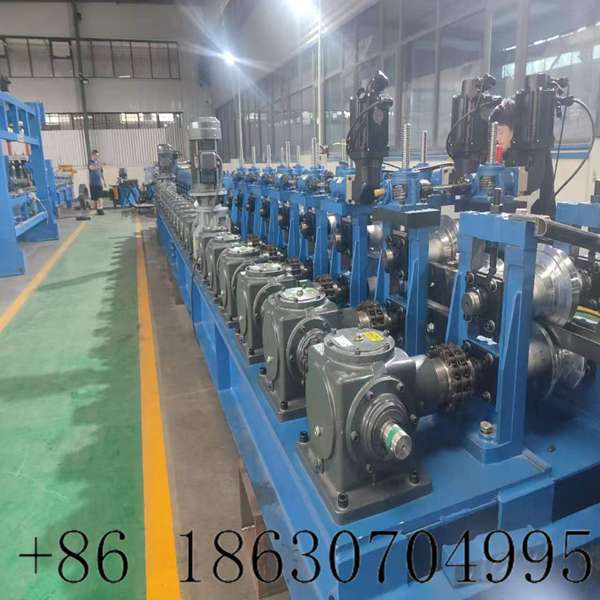

The machine adopts heavy-duty solid stand frame and high-precision gear box transmission structure. The gear box

is made of cast iron shell with internal wear-resistant alloy gears, delivering stable torque and low vibration during

long-hour continuous forming. The transmission system avoids slipping under heavy load, ensuring consistent profile

size precision for thousands of daily finished brackets. Compared with ordinary chain drive machines, this gear box

structure greatly extends service life and cuts frequent maintenance costs for solar factories.

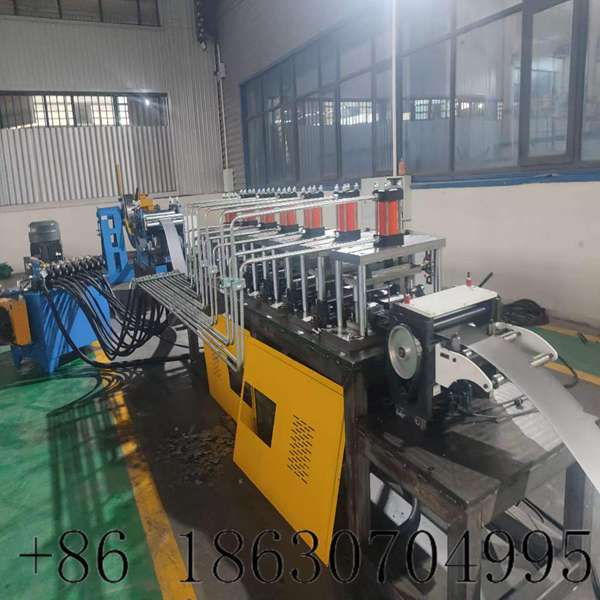

Integrated automatic punching device is installed on the forming line to finish positioning holes, connecting holes

and mounting notches in one single pass without secondary processing. The punching station can be customized

with different hole layouts according to clients’ solar bracket drawing standards. Synchronized punching and rolling

save separate stamping equipment and extra labor, shortening the whole production flow and lifting daily output volume

dramatically. The punching mold adopts high-hardness alloy steel to keep neat hole edges without deformation on

galvanized steel raw materials.

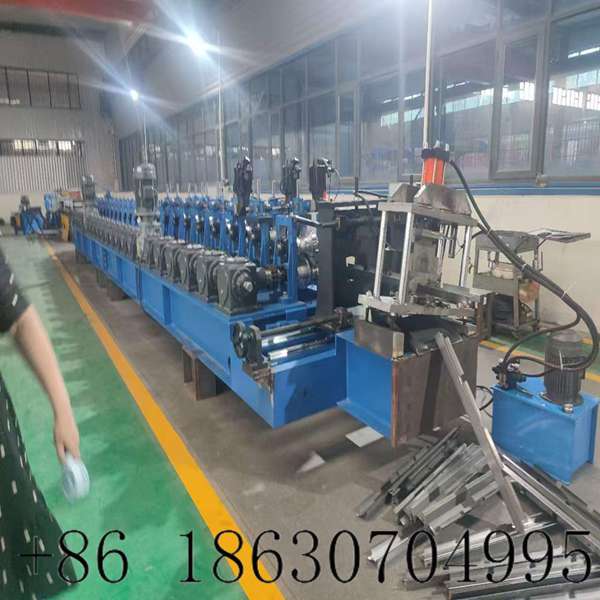

The front-mounted hydraulic cutting head realizes fixed-length automatic cutting for special shaped solar brackets.

The cutting blade undergoes quenching treatment to maintain sharp cutting performance, producing burr-free cross

sections that do not require secondary polishing. The hydraulic cutting system runs synchronously with the forming

speed, supporting random length setting for various customized PV support sizes. Independent hydraulic station

provides stable pressure with low oil leakage rate, lowering daily maintenance workload for workshop operators.

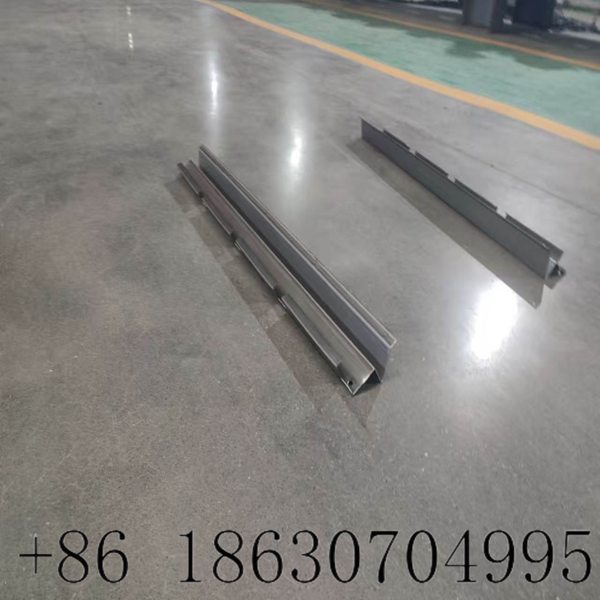

All finished solar brackets formed by this equipment feature uniform section size, flat surface and stable mechanical performance, fully meeting the load-bearing standards of photovoltaic power generation projects. The whole machine frame is thickened steel plate welded with stress relief treatment, resisting deformation under long-term heavy load operation. Equipped with PLC touch screen control system, workers can adjust forming speed, punching intervals

and cutting length with simple one-click operation. Hebei Xinnuo, a reliable Solar Bracket Roll Forming Machine

Manufacturer, supports customized profile shapes, raw material thickness and global working voltage standards.

Every forming line undergoes 72-hour continuous aging test before delivery, with complete export certification

documents and lifelong remote video technical support. This special shaped PV bracket roll former is the ideal

high-efficiency production equipment for solar energy enterprises pursuing fast investment return and low

comprehensive production cost.

Main Technical Parameters of Special Shaped Solar Bracket Roll Forming Machine
