PU Roller Shutter Door Machine with 5 Ton Hydraulic Uncoiler

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO), based in Botou, Hebei — the center of China's cold roll forming industry — has specialized in roll forming equipment for more than 30 years, exporting over 3,000 machines to more than 140 countries and regions. The PU roller shutter door machine is a complete line that turns steel coil into insulated, energy-saving roller shutter door panels in one continuous automatic process.

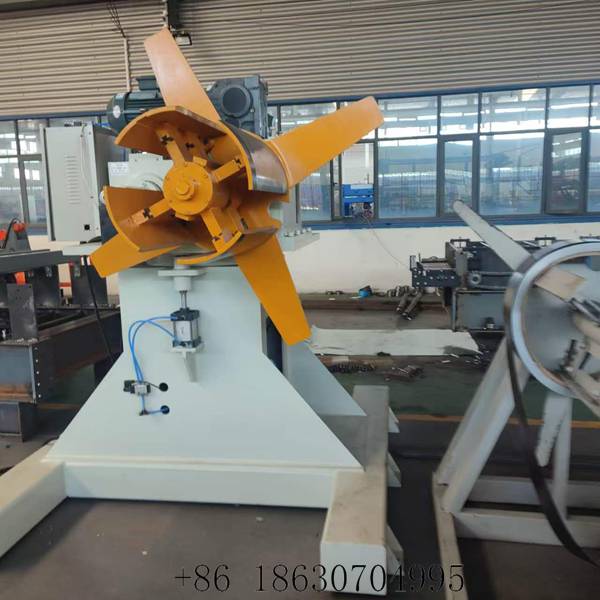

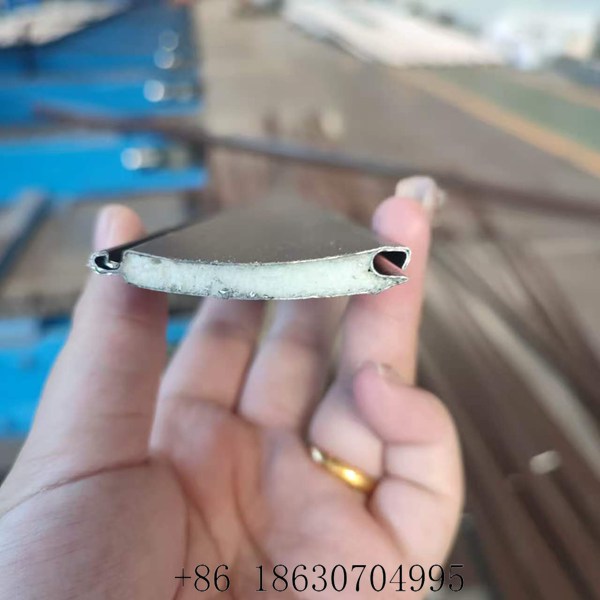

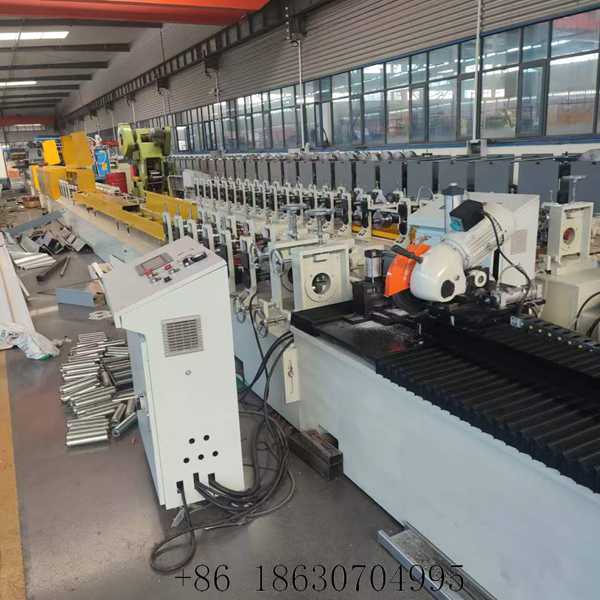

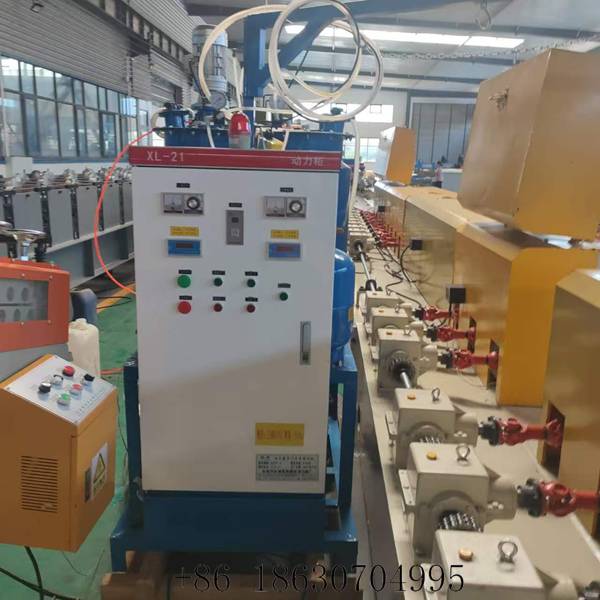

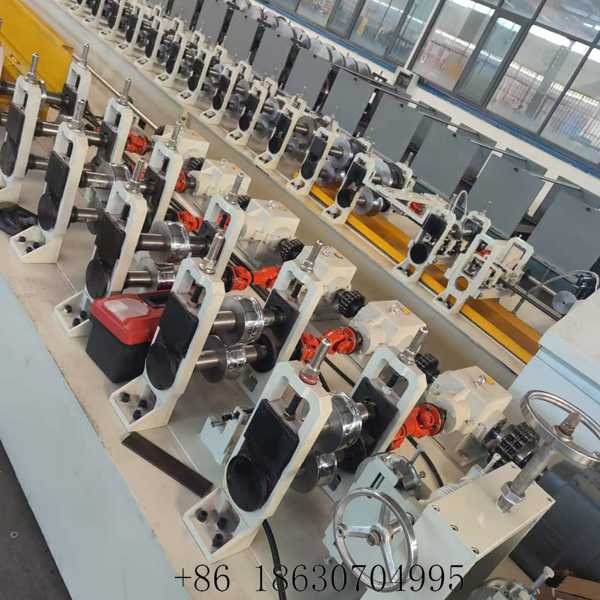

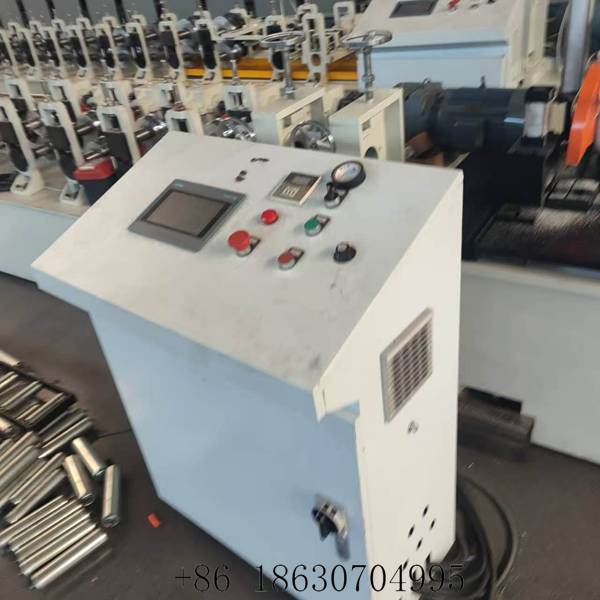

The line starts with the 5-ton hydraulic uncoiler, whose hydraulically expanded mandrel grips the coil firmly and feeds the strip at steady tension without scratching or edge damage. Inside the forming machine, precision-ground rollers shape the slat profile pass by pass; seen from the front view, the machine body integrates the roll forming section, the PU foam filling unit and the cutting station in one straight flow. After profiling, metered polyurethane foam is injected into each panel, so the finished PU roller shutter door panel emerges flat, rigid and evenly insulated. The electrical control cabinet houses the PLC control system and touch-screen HMI, which manage forming parameters, foam dosage, cutting length and batch quantity.

By combining profile forming with PU insulation technology, the machine produces panels that are strong yet highly energy efficient. The PU foam core delivers excellent thermal insulation, improving the energy performance of the finished door. Precision-engineered forming rollers ensure accurate profiles, consistent dimensions and smooth panel surfaces, while automatic cutting gives clean, precise cuts to preset lengths for uniform output. Continuous roll forming keeps production fast, reduces downtime and lowers labor requirements.

For producers that also make plain shutter slats, door frames or bottom rails, browse our Shutter Door Machine and Door Frame Machine category and cover an entire door program from one supplier.

Key Features

• Integrated PU insulation production – combines profile forming and PU insulation technology to produce durable and energy-efficient roller shutter door panels
• High-precision roll forming – precision-engineered forming rollers ensure accurate profiles, consistent dimensions and smooth panel surfaces
• Excellent thermal insulation – the PU foam core improves thermal insulation, helping enhance the energy efficiency of finished roller shutter doors
• Fast continuous production – continuous roll forming enables efficient production and helps reduce downtime and labor requirements
• Automatic PLC control – the PLC control system simplifies operation and allows operators to set forming parameters, cutting length and production quantities easily

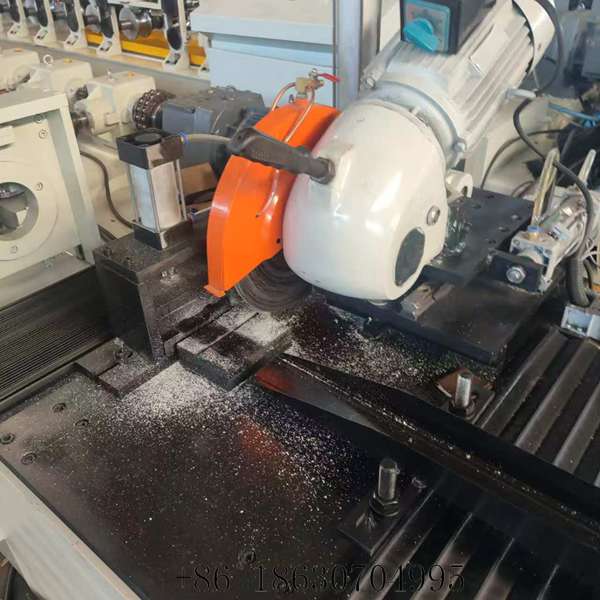

• Accurate automatic cutting – the automatic cutting system provides clean and precise cuts according to preset lengths, improving finished-product consistency

Beyond shutter door equipment, our Roll Forming Machine portfolio covers purlin, roofing, floor decking, cable tray and special profile lines for the steel construction industry. Send your coil width, panel length, foam density and daily output, and XINNUO engineers will recommend the most economical configuration with a factory-direct quotation.

Technical Parameters

5 Ton Hydraulic Uncoiler

Forming & PU Insulation Section

Control & General
