Struggling with sheet deformation, slow production, or poor water drainage? Hebei Xinnuo’s Cuba 1000/IB730 trapezoidal roll forming machine solves these pain points. Featuring high-precision engineered rollers and automated PLC cutting, it eliminates oil-canning and ensures zero material wasting, delivering flawlessly uniform, leak-proof roofing sheets to maximize your factory’s ROI.

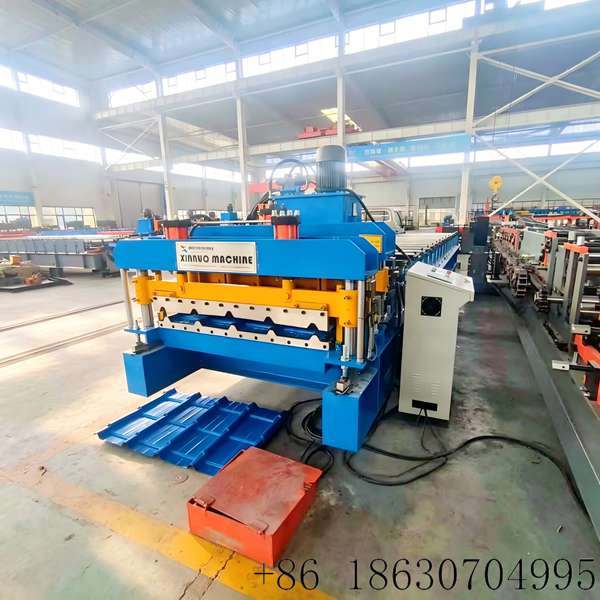

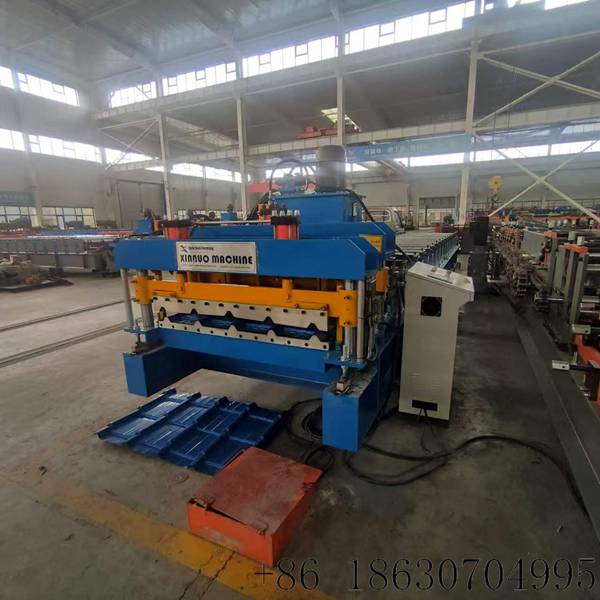

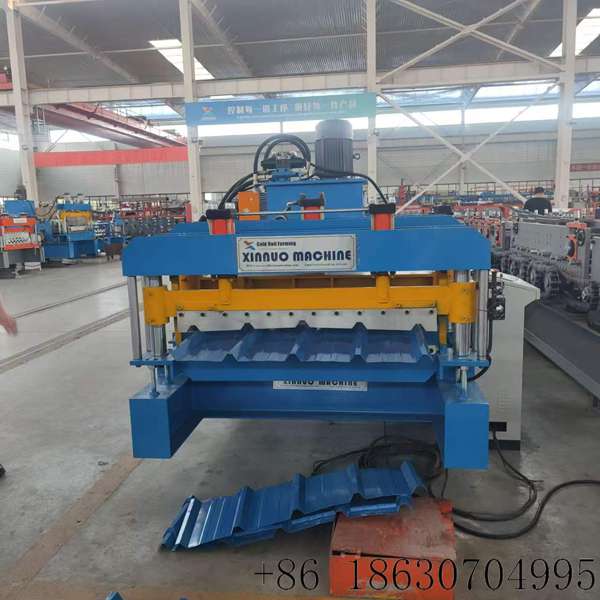

Manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd., a leading expert in cold roll forming technology, the Cuba 1000 Trapezoidal Metal Roofing Sheet Roll Forming Machine is specifically engineered to meet the high-standard construction demands of the Caribbean and Latin American markets. This state-of-the-art production line transforms galvanized steel, galvalume, or pre-painted coils into high-precision, heavy-duty trapezoidal roofing sheets with an effective width of 1000mm, widely used in industrial factories, modern warehouses, and commercial buildings.

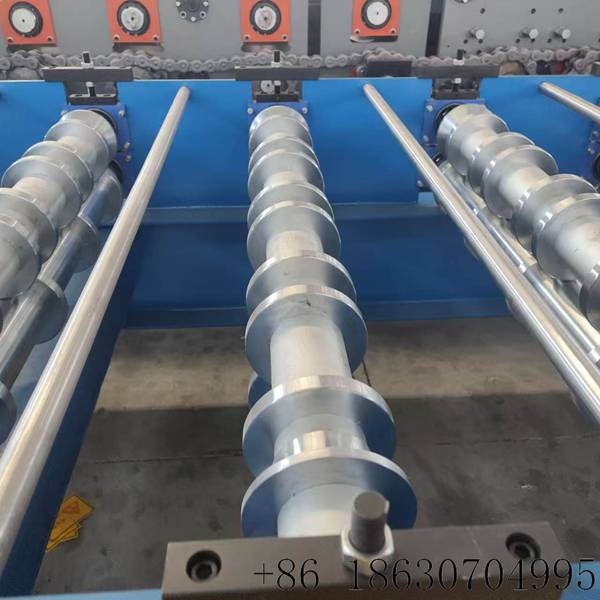

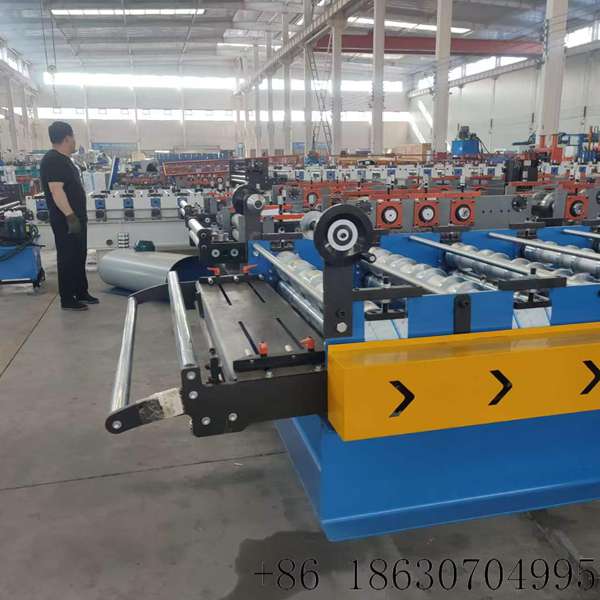

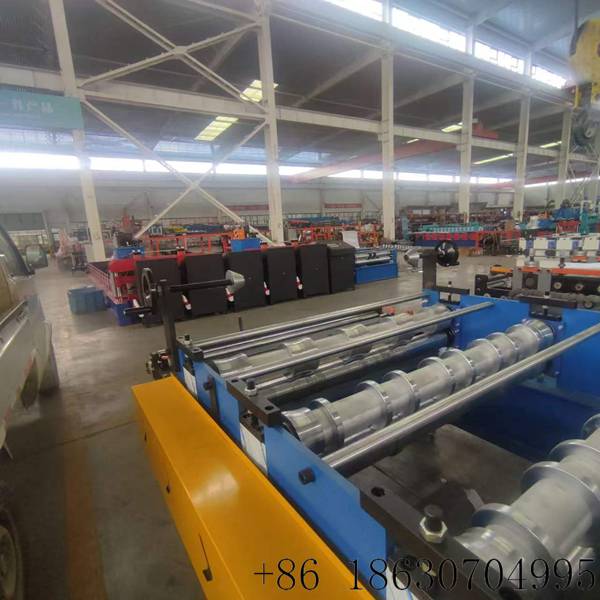

Integrating decades of manufacturing expertise from Xinnuo, this machine features an advanced heavy-duty wallboard structure and high-grade forged steel rollers that have undergone precise CNC machining and vacuum heat treatment. This ensures exceptional durability, wear resistance, and flawless profile scratching prevention. Driven by a high-torque motor and synchronized chain transmission system, the machine guarantees stable, low-noise operation even during continuous, high-intensity production.

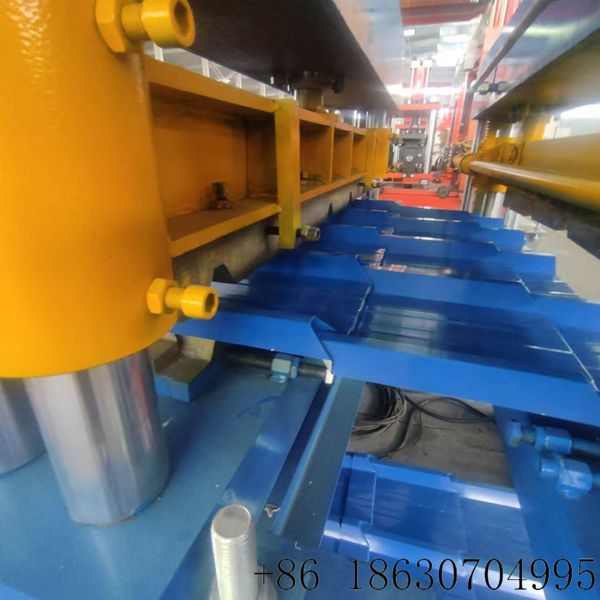

The line is fully automated by a premium Mitsubishi or Siemens PLC control system. With an intuitive touchscreen interface, operators can easily configure cutting lengths, batch quantities, and production tolerances down to ±1.0mm. The hydraulic post-cutting system utilizes high-strength Cr12MoV die steel blades, delivering clean, burr-free cuts without deforming the trapezoidal profile. Whether you are looking to expand your factory capacity or upgrade your product quality, Hebei Xinnuo provides the ultimate cost-effective solution with comprehensive global after-sales support.
| Parameter Item | Technical Specification Details |
|---|---|
| Suitable Raw Material | PPGI, GI, Aluzinc, Aluminum Coils |
| Material Thickness Range | 0.3 mm – 0.7 mm |

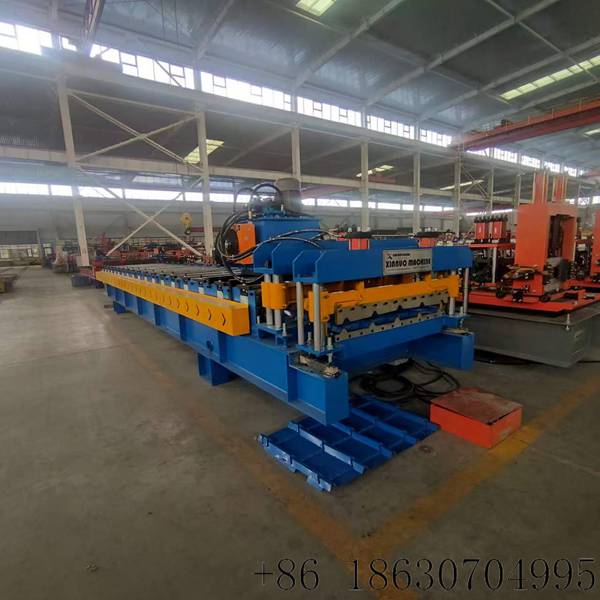

| Effective Width | 1000 mm |
| Forming Speed | 12 – 15 meters / minute (excluding cutting time) |

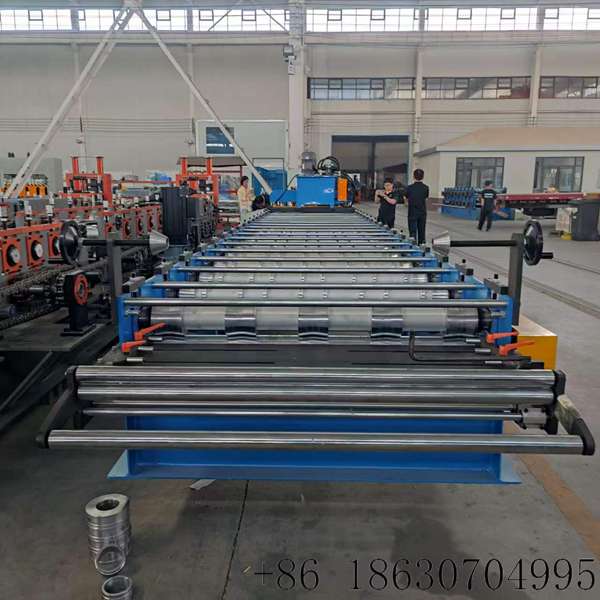

| Roller Stations | 16 – 18 Stations (Subject to final profile design) |
| Roller Material | High-grade 45# Steel, Hard Chrome Plated 0.05mm |
| Shaft Diameter & Material | Φ 75 mm / 80 mm, Solid 45# Steel with tempering Treatment |
| Main Motor Power | 5.5 kW / 7.5 kW |

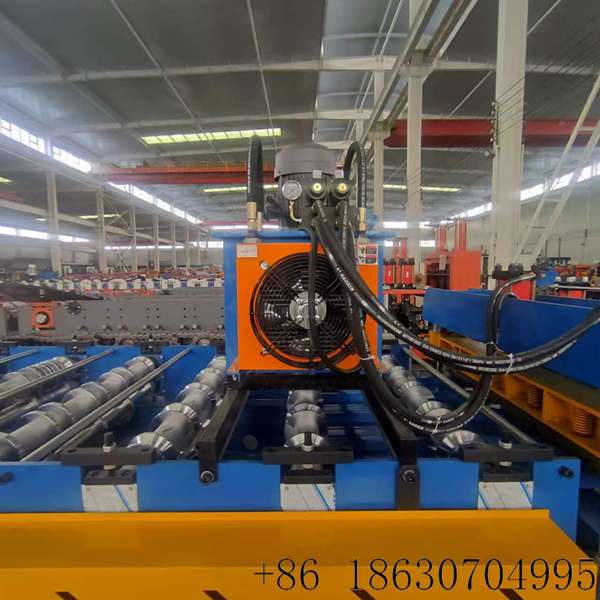

| Hydraulic Cutter Power | 4.0 kW |
| Cutting Blade Material | Cr12MoV Steel with quenched treatment (HRC58-62) |
| Control System | Panasonic / Mitsubishi / Siemens PLC with Touch Screen |
| Cutting Length Tolerance | ± 1.0 mm or less |
| Voltage Requirement | 380V, 50Hz, 3Phase (Customizable based on local standards) |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
