Delivery time: 15 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO), formerly Botou Huayu Roll Forming Machinery Factory, was founded in 1995 and is a national high-tech enterprise located in the Cold Roll Forming Equipment Industrial Base of Botou City, Hebei Province, China. From two modern production bases covering more than 100,000 square meters, the company manufactures a full range of metal sheet processing equipment — including this 4m hydraulic bending machine — with annual output of over 3,000 sets. Certified to ISO9001 and CE, XINNUO exports to more than 140 countries and regions across South America, the Middle East, Southeast Asia, Africa and Europe, and provides factory-direct pricing, on-site installation guidance and lifetime technical support.

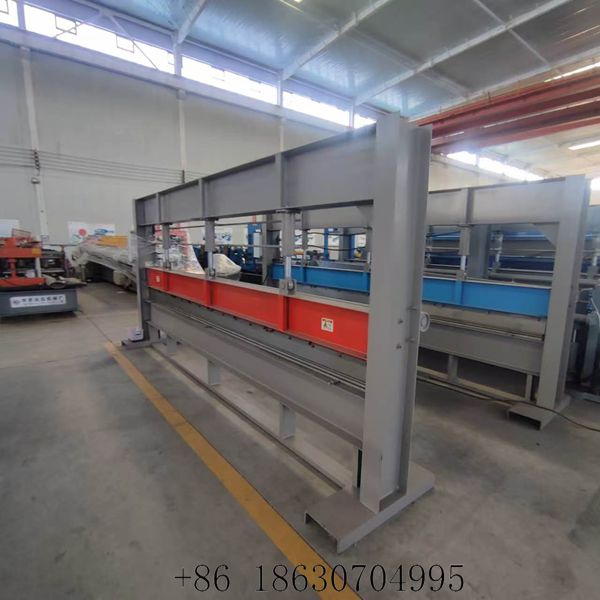

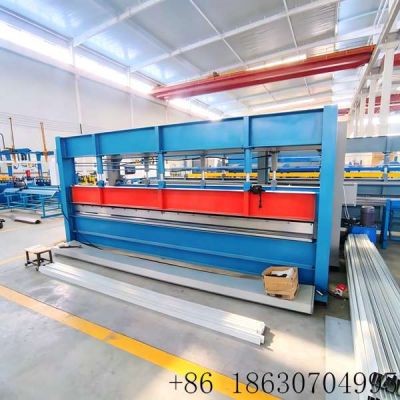

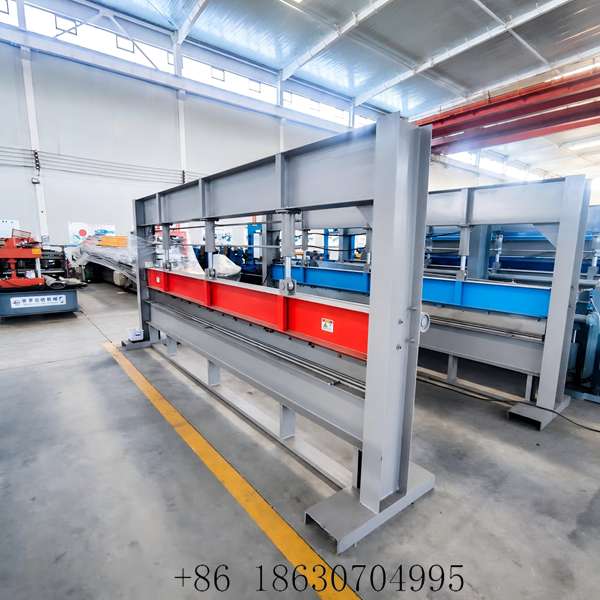

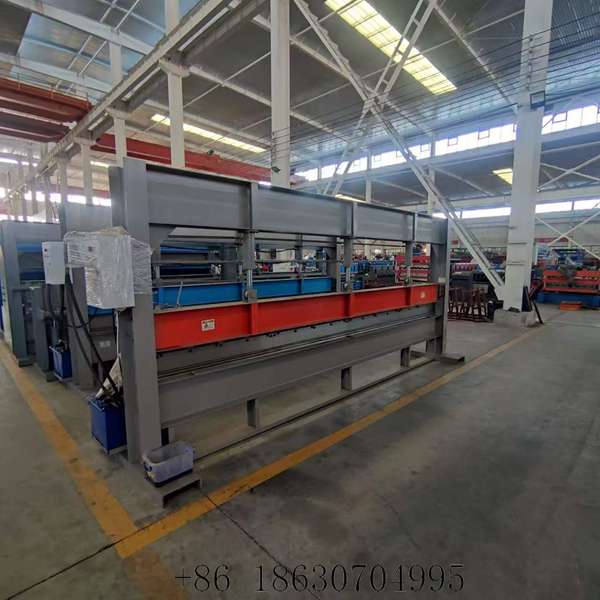

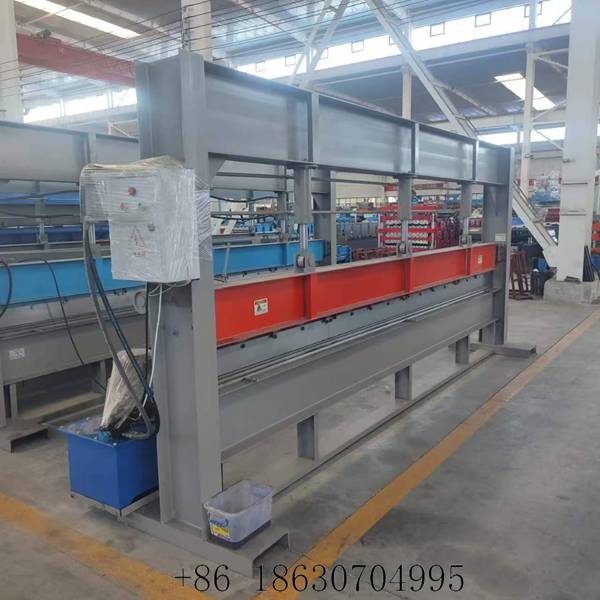

The XINNUO 4m Hydraulic Bending Machine is a heavy-duty hydraulic press brake engineered for high-precision bending of carbon steel, stainless steel, aluminum and other metal sheets up to 4000 mm in length. Accurate hydraulic control ensures consistent bending angles part after part, while the robust welded steel frame absorbs repeated load without deflection, maintaining long-term accuracy even under continuous production schedules.

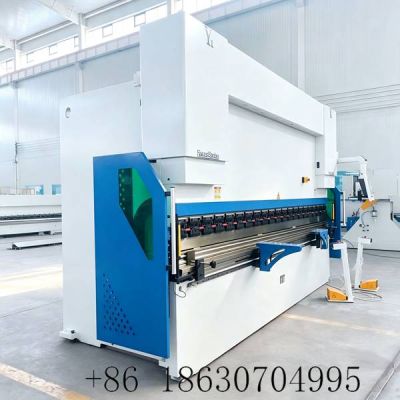

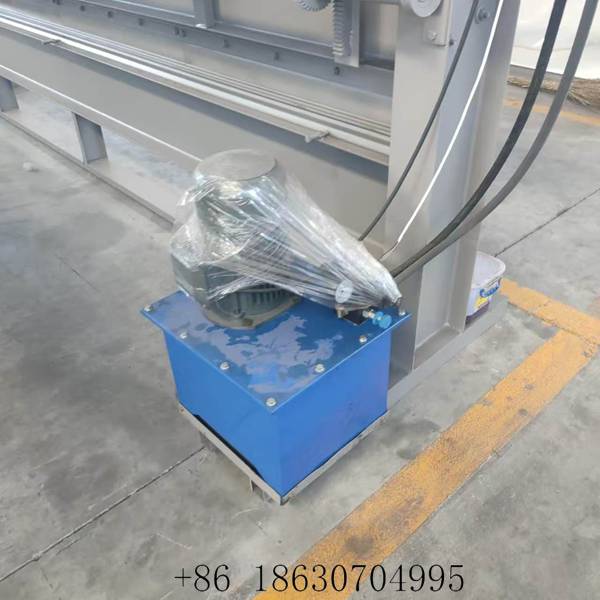

Equipped with a CNC controller and a high-accuracy back gauge, the machine turns complex parameter setting into a simple, repeatable process. Operators store programs, recall them in seconds, and switch between small custom batches and mass production with equal efficiency. The stable hydraulic system delivers smooth and synchronized bending performance with low noise, and fast clamping tooling reduces changeover time between jobs. Safety light curtains and emergency stop buttons protect the operator as standard.
Widely used in HVAC duct fabrication, steel structure workshops, enclosure and cabinet manufacturing, and automotive parts production, this hydraulic bending machine adapts to almost any sheet metal job in your workshop. Bending length, pressure, tooling and control systems can all be customized to match your exact requirements. For more metal sheet processing equipment, explore our complete Roll Forming Machine collection, or browse the Other Recommended Machines range for complementary presses and production lines. Contact XINNUO for a tailored quotation, delivery schedule and installation support.
| Parameter | Specification |
|---|---|
| Bending length | 4000 mm (4 m) |
| Nominal pressure | 160 – 250 ton (customizable) |
| Max. plate thickness (Q235 steel) | 12 – 16 mm |
| Cylinder stroke | 100 – 200 mm |
| Distance between housings (approx.) | 3300 mm |
| Throat depth (approx.) | 400 mm |
| Back gauge stroke (X axis) | 500 mm |
| Control system | CNC controller + high-accuracy back gauge |
| Main motor power | 11 – 15 kW |
| Voltage | 380 V / 50 Hz (customizable) |
| Overall dimensions (approx.) | 4.3 × 2.1 × 2.6 m |
| Machine weight (approx.) | 13 – 15 t |
Swipe horizontally to view full parameters.
