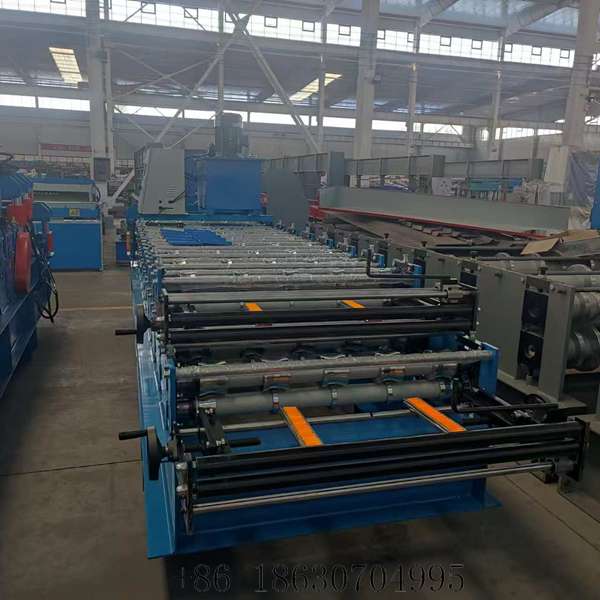

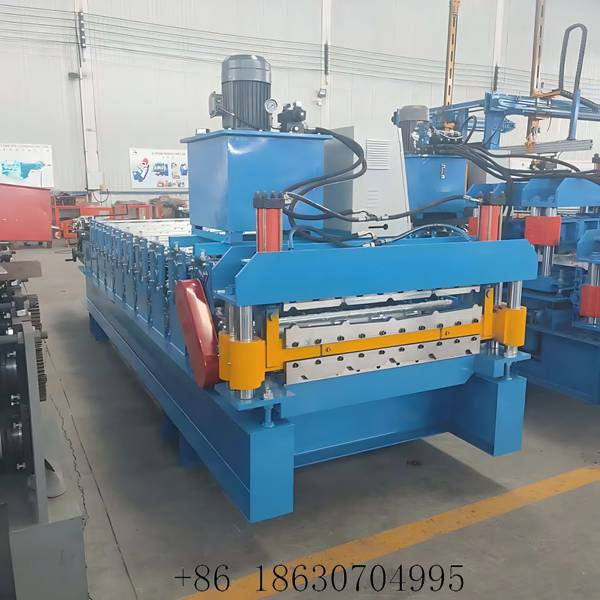

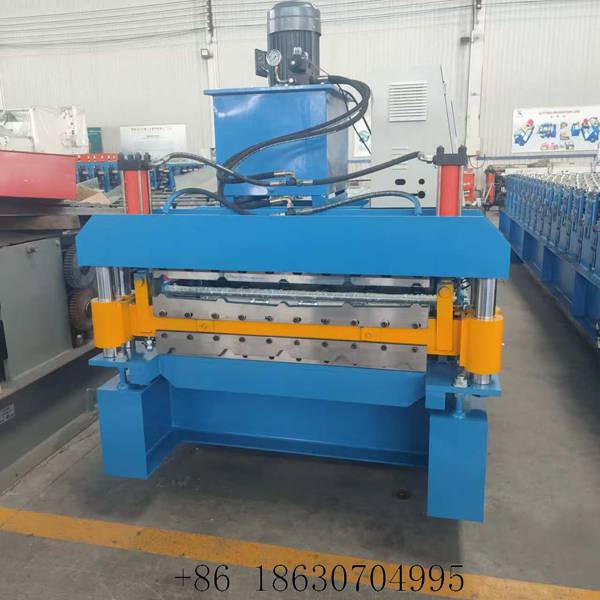

ibr sheet making machine - Double Layer Trapezoidal Machine

Hebei Xinnuo Roll Forming Machine Co., Ltd. (XINNUO), established in Botou, Hebei, China, is a professional ibr sheet making machine manufacturer delivering high-performance cold roll forming equipment to metal roofing and building industries worldwide. The double-layer trapezoidal metal roofing sheet forming machine introduced here is one of our most requested two-in-one solutions: a single machine body that runs two different trapezoidal roofing profiles, built for fabricators who want maximum output flexibility from a compact workshop footprint.

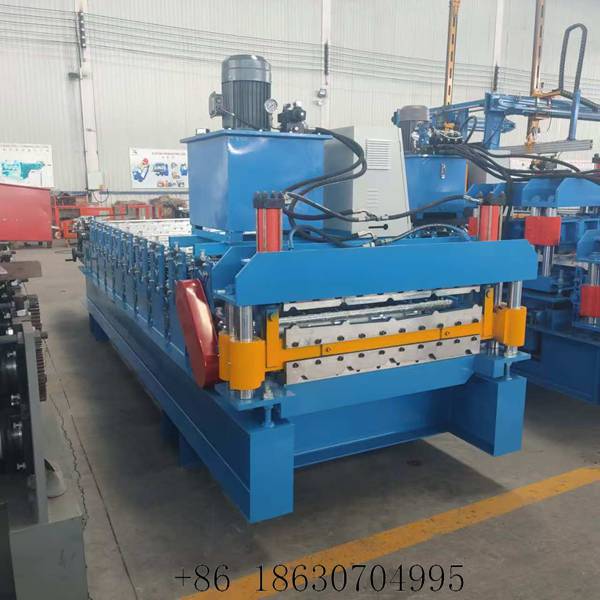

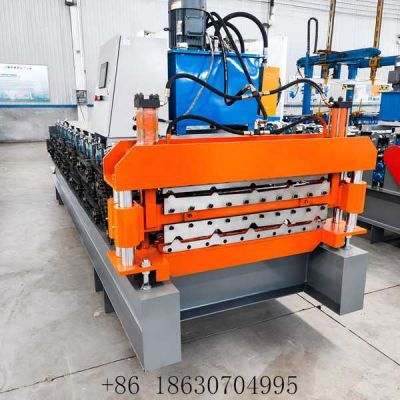

Instead of investing in two separate single-layer machines, this unit packs two independent forming sections - an upper section and a lower section - into one heavy-duty frame. Each section is fully independent, so the machine forms two different trapezoidal roofing profiles with the same reliability as a dedicated line. Compared with buying two single-profile ibr sheet making machine units, the double-layer design cuts equipment investment significantly, occupies far less workshop space, and leaves only one drive system and one control system to run and maintain. For medium and small fabricators serving regional roofing markets, this is the most economical way to widen the product portfolio without expanding the factory.

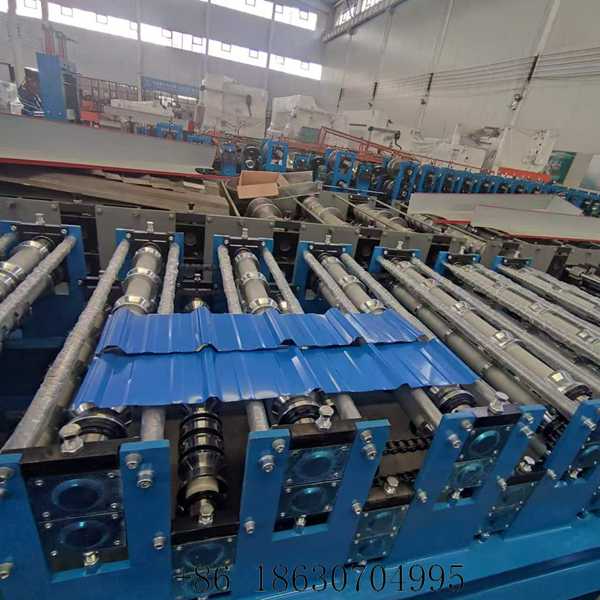

Changing from one profile to the other requires no roller replacement at all. The operator simply selects the target trapezoidal profile on the control panel, and the material path switches between the upper and lower forming sections in minutes. Downtime between production runs stays short, and the machine is ready to answer orders for warehouse roofing, farm sheds, workshop buildings and general industrial building projects. A single double-layer unit lets a fabricator accept more order types without adding floor space, extra machines or extra operators.

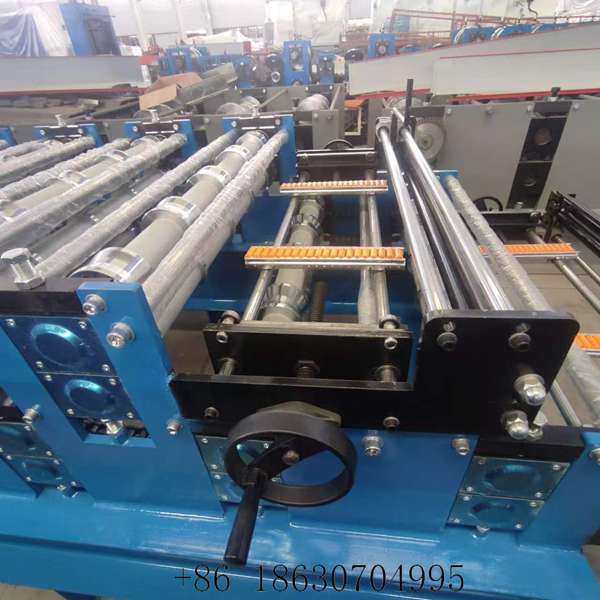

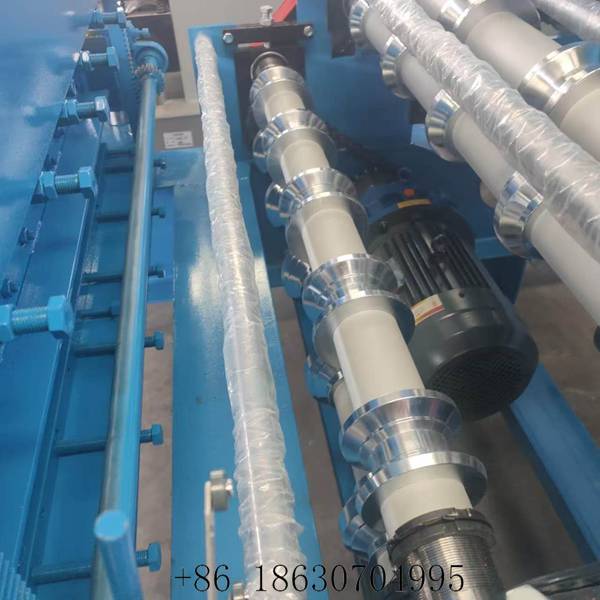

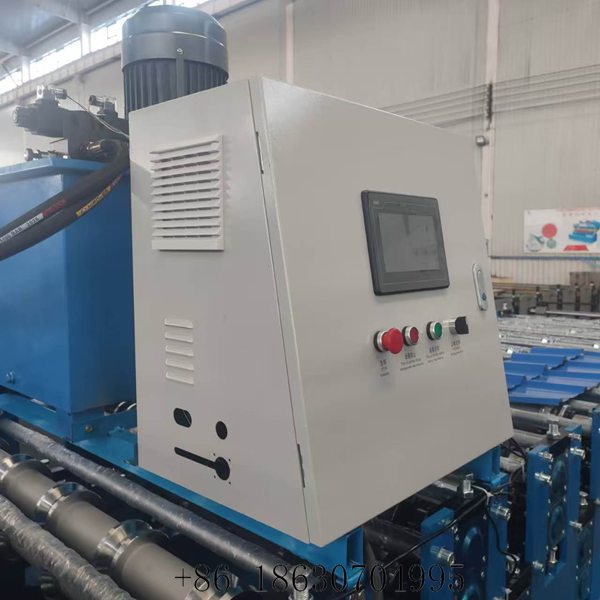

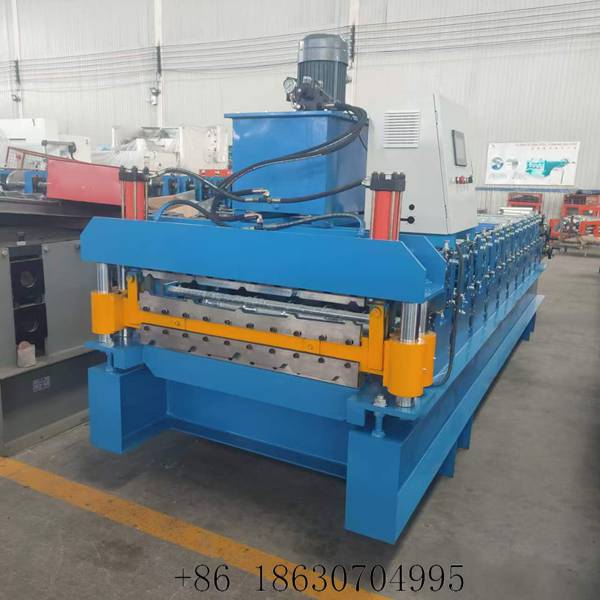

Forming rollers are precision-machined and hardened for accurate profile dimensions and smooth sheet surfaces, while PLC-controlled feeding, length counting and hydraulic cutting keep the whole process automatic and consistent. As part of the complete cold roll forming range from XINNUO, this double-layer machine is supported with installation guidance and operator training. To compare our two-in-one models, visit the Double Layer Roll Forming Machine category, or browse the Trapezoidal Sheet Roll Forming Machine collection for single-profile alternatives. Contact our engineers with your target profiles and coil width for a tailored quotation.

Key Features

• One machine for two different trapezoidal roofing profiles - independent upper and lower forming sections reduce equipment investment compared with buying two separate machines
• Compact footprint - two forming lines stacked in one frame occupy much less workshop space, ideal for medium and small fabricators
• Fast profile switch without roller replacement - select the target profile from the control panel and change over in minutes
• Wider order range - produce sheets for warehouse, farm shed and industrial building projects from one machine
• Automatic operation - PLC-controlled feeding, length counting and hydraulic cutting for stable, consistent output

Technical Parameters

Swipe horizontally to view full parameters.
