Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

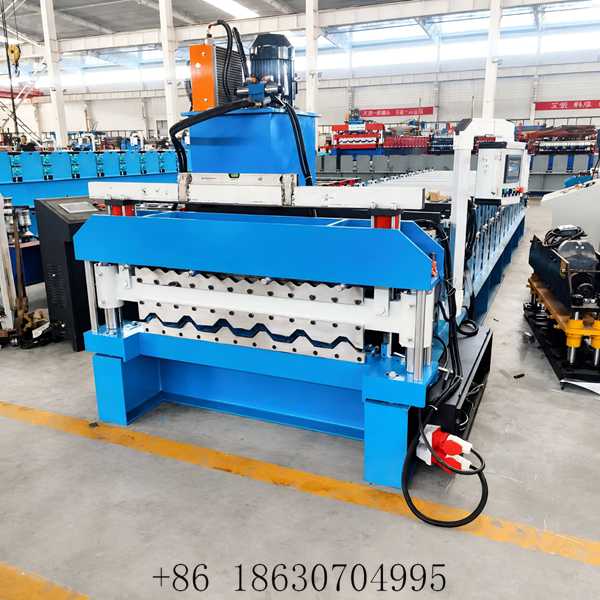

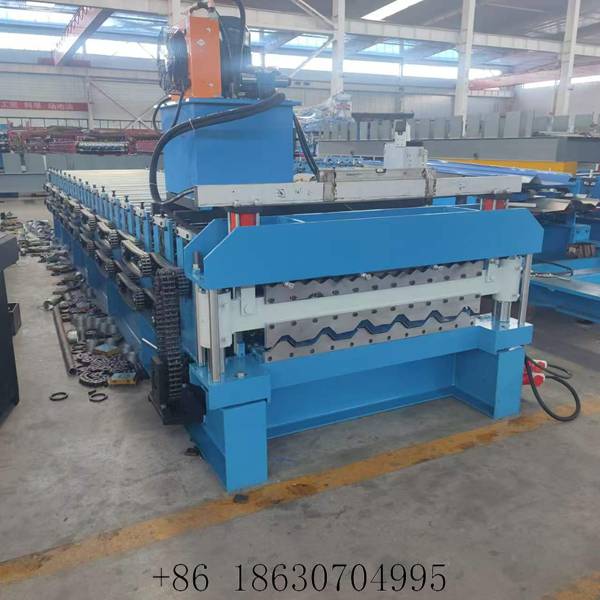

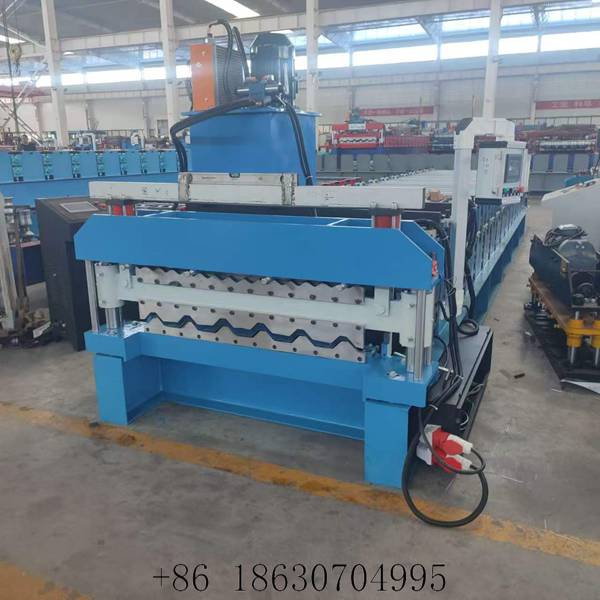

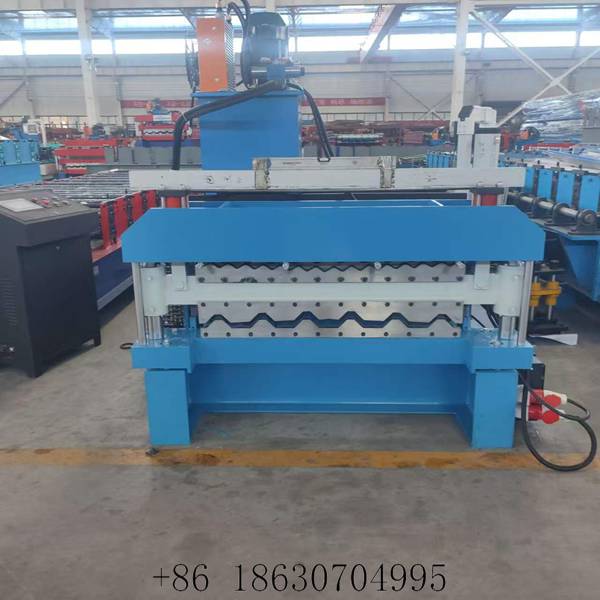

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has built cold roll forming equipment for more than 30 years in Botou, Hebei, China, with an annual output of over 3,000 sets and exports to more than 140 countries and regions. The double layer TP40 roofing machine is designed for the Brazilian roofing market: two forming systems are stacked in one machine body, so manufacturers can produce two popular trapezoidal metal roofing profiles on a single double layer TP40 roofing machine, expanding their product range while saving equipment investment.

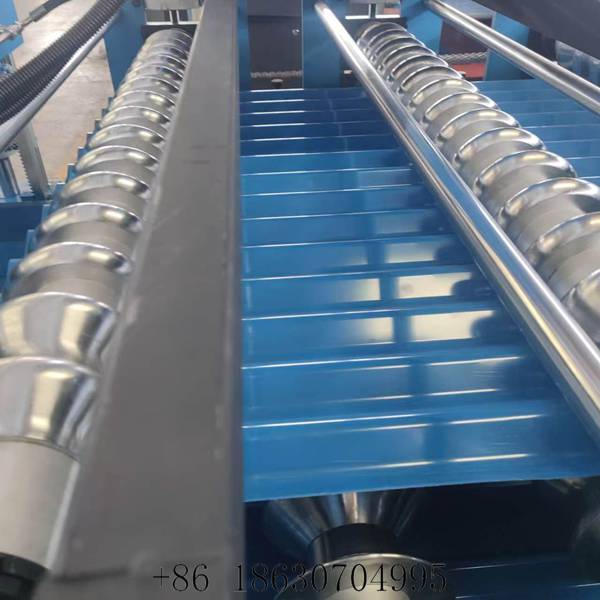

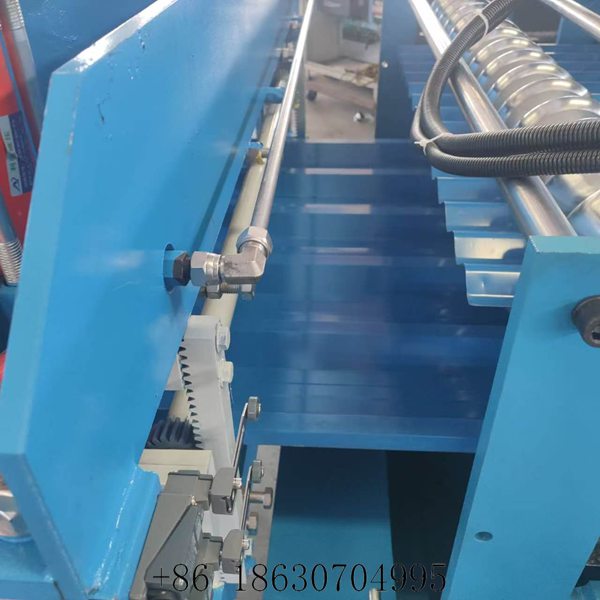

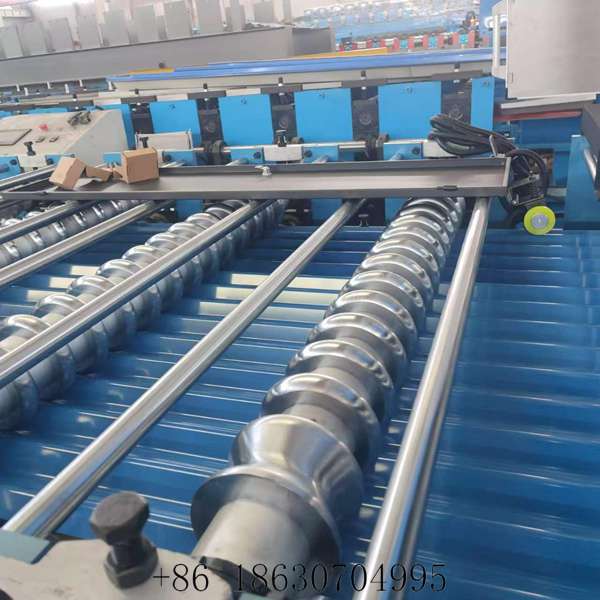

With two roofing profiles in one machine, the upper and lower roller sets are tooled for different trapezoidal designs, and the material path is switched with adjustable feeding guides in only 5–15 minutes. This space-saving production solution integrates two forming systems into one line, reducing workshop space by 40–60% compared with installing two independent machines. The machine is suitable for IBR and trapezoidal profiles: TP40, IBR and other Brazilian market designs can be produced from customer drawings and specifications. High-precision roll forming is delivered by precision-engineered rollers that provide accurate dimensions, consistent profiles and smooth panel surfaces for reliable roofing installation. Fast and stable continuous production keeps output high while the reinforced frame and reliable transmission minimize vibration during long runs. The standard configuration — 12 and 14 forming stations per layer, 350H welded frame, 5.5 kW main motor and heavy-duty double-row chain drive — is a production-proven package for the Brazil market.
Working with color-coated and galvanized steel coil, the line suits residential, commercial and industrial roofing projects across Brazil. Browse our Double Layer Roll Forming Machine category for other profile combinations, or compare single-profile options in the Trapezoidal Sheet Roll Forming Machine collection. Send us your TP40 or IBR profile drawings, and our engineers will match the roller tooling, sheet thickness and voltage to your project and provide a tailored quotation.
| Parameter | Specification |
|---|---|
| Machine type | Double-layer trapezoidal roofing machine |
| Target market | Brazil (custom profiles per customer drawings) |
| Profile compatibility | TP40, IBR and other trapezoidal profiles (customizable) |
| Forming stations | 12 – 14 rows per layer (customizable) |
| Machine frame | 350H welded steel structure |
| Main motor power | 5.5 kW |

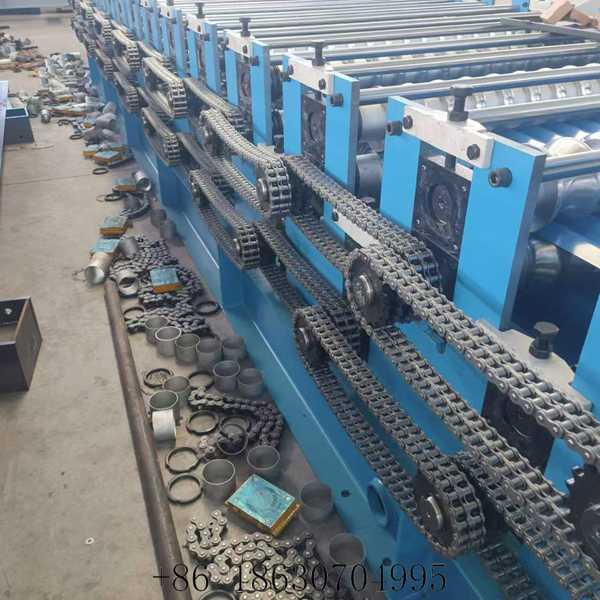

| Drive system | Heavy-duty double-row chain drive |
| Profile changeover time | 5 – 15 minutes |
| Space saving vs two machines | 40 – 60% |

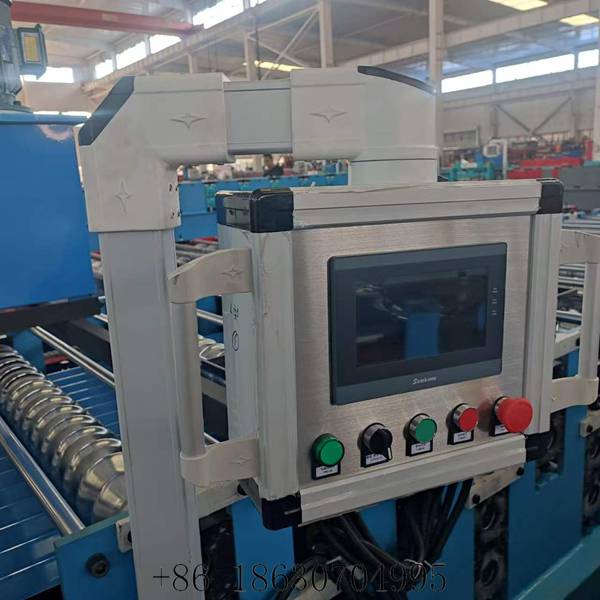

| Control system | PLC + touch screen |

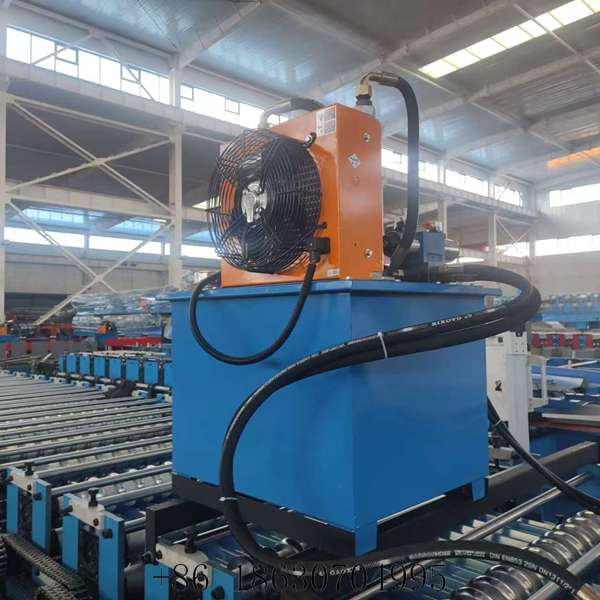

| Cutting method | Hydraulic cutting, PLC fixed length |
| Suitable material | Color-coated / galvanized steel coil |
| Customization | Profile per drawings, sheet thickness, voltage |
| Warranty | 1 year |
Swipe horizontally to view full parameters.
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
