Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

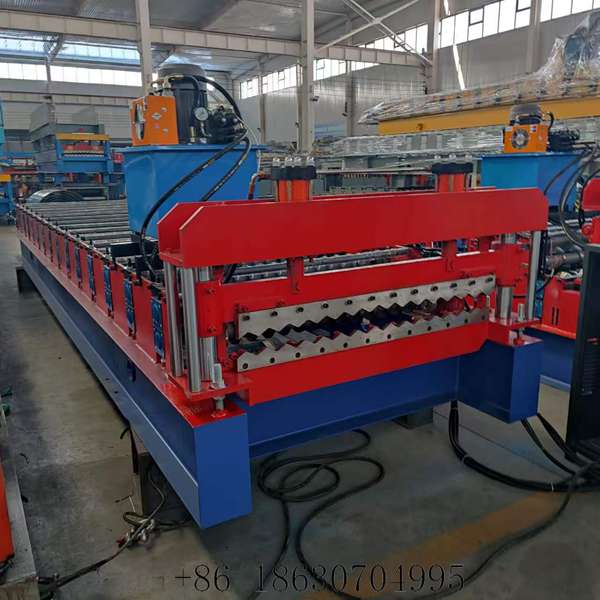

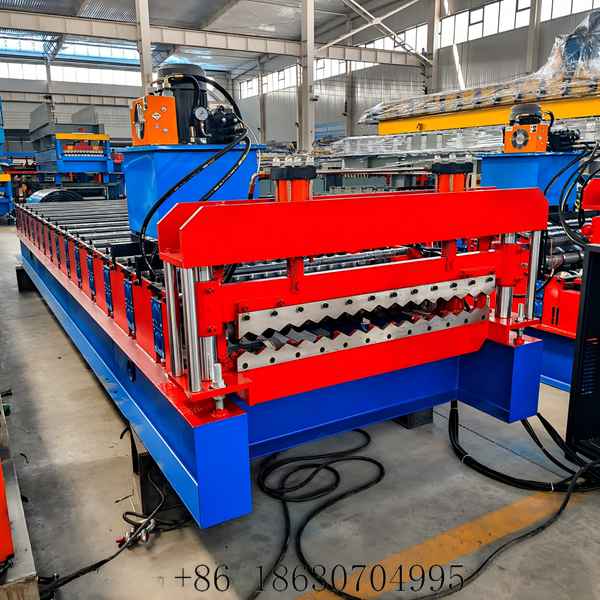

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) has manufactured cold roll forming equipment for more than 30 years in Botou, Hebei, China. With an annual output of over 3,000 sets and exports to more than 140 countries and regions, XINNUO is a trusted supplier of roofing machinery for tropical and coastal markets. The 995 arc corrugated roll forming machine is a proven solution for producing smooth, continuous 995 mm arc corrugated roofing sheets, custom-engineered for Brazil’s demanding climate.
Custom-built for Brazil’s tropical and coastal environment, this corrugated roll forming machine uses hard-chrome plated rollers and a moisture-proof electric cabinet to resist coastal salt-spray, heavy rainfall and strong UV radiation, ensuring long-term stable performance even in humid workshop conditions. Its gentle, progressive arc forming sequence shapes smooth 14-wave panels without sheet wrinkling, cracking or paint peeling, so locally popular PPGI, PPGL, galvalume and galvanized sheets of 0.3–0.8 mm keep their original anti-corrosion and UV-resistant coating properties and comply with Brazilian NBR roofing requirements.

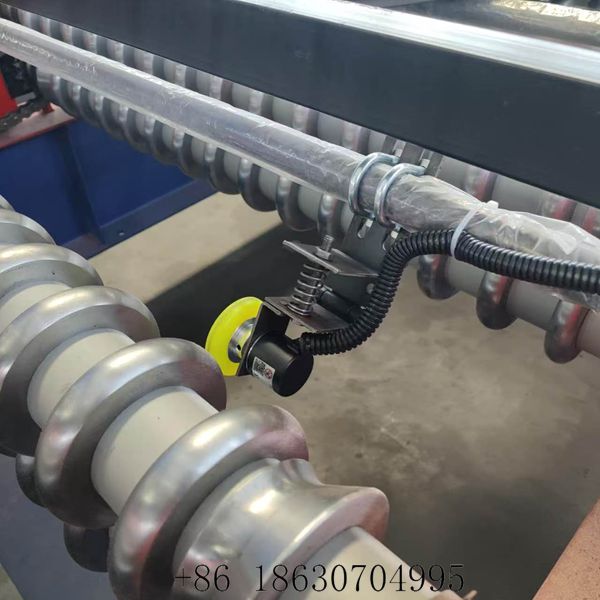

The 995 mm panels fit popular Brazilian roof profiles and work together with IBR, 840 and 900 trapezoidal sheets, making the machine widely used for farm sheds, industrial warehouses and large-span buildings across Brazil. Automatic PLC control integrates forming, length measurement and cutting, while the hydraulic cutting system delivers precise panel lengths and clean edges with less material waste. Durable construction — forged 45# forming rollers, precision-ground 40Cr shafts and a stable welded frame — guarantees consistent forming quality during continuous production.
For complete roofing systems, browse our Roof Sheet Making Machine category, or compare panel-forming options in the Trapezoidal Sheet Roll Forming Machine collection. Coverage width, wave profile, sheet thickness and voltage can all be customized to your project, and our engineers are ready to match the right configuration and provide a tailored quotation.
| Parameter | Specification |
|---|---|
| Effective coverage width | 995 mm |
| Wave count | 14 waves |
| Sheet material | PPGI / PPGL / galvalume / galvanized steel coil |
| Sheet thickness | 0.3–0.8 mm |
| Feed width | Up to 1,200 mm |

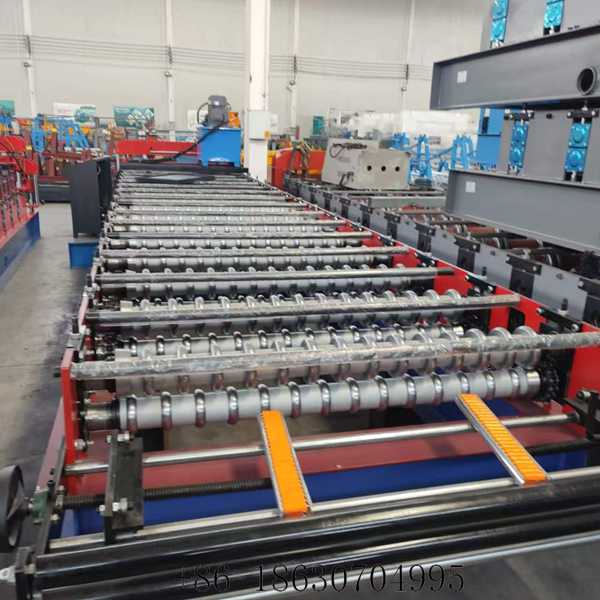

| Forming stations | 16 rows |
| Machine frame | 350H welded steel, CNC-machined, 0.05 mm flatness |
| Shafts | Φ80 mm, 40Cr steel, precision-ground |
| Drive system | Cycloidal reducer + duplex chain drive |

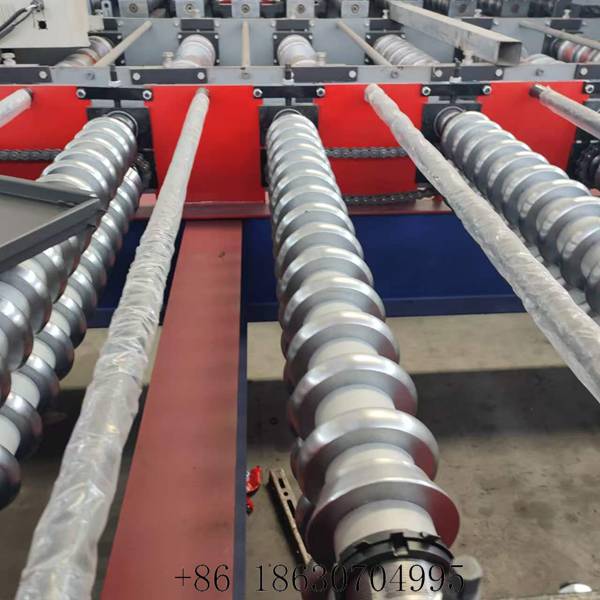

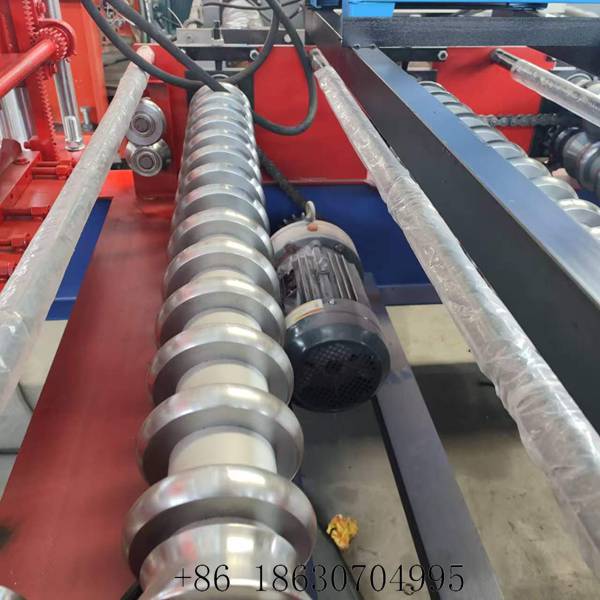

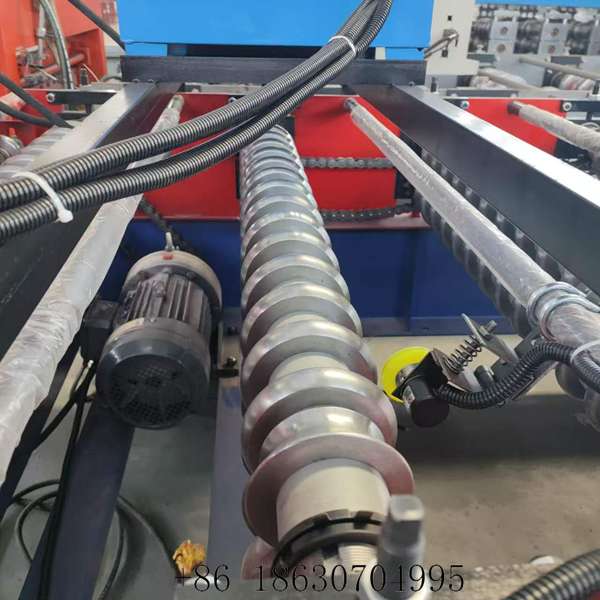

| Forming rollers | Forged 45# steel, hard-chrome plated, HRC 45–50° |
| Electric cabinet | Moisture-proof, designed for humid coastal workshops |

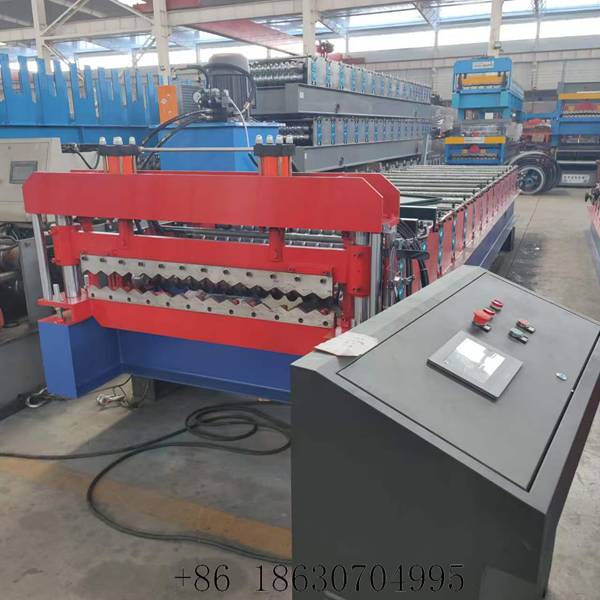

| Control system | PLC + touch screen, automatic forming / measuring / cutting |

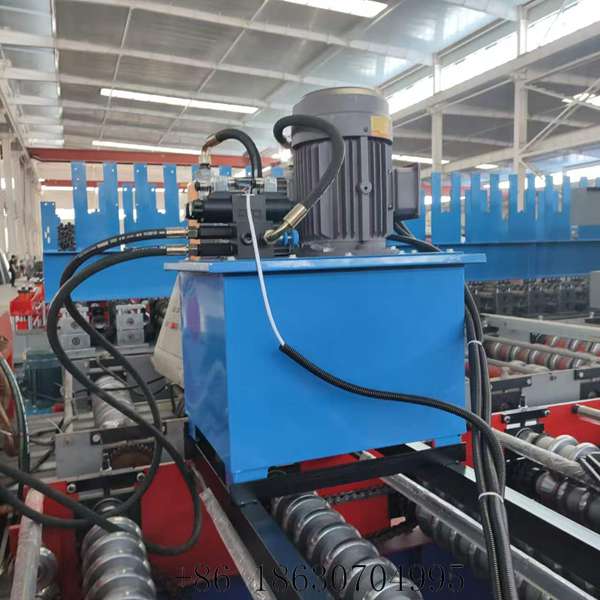

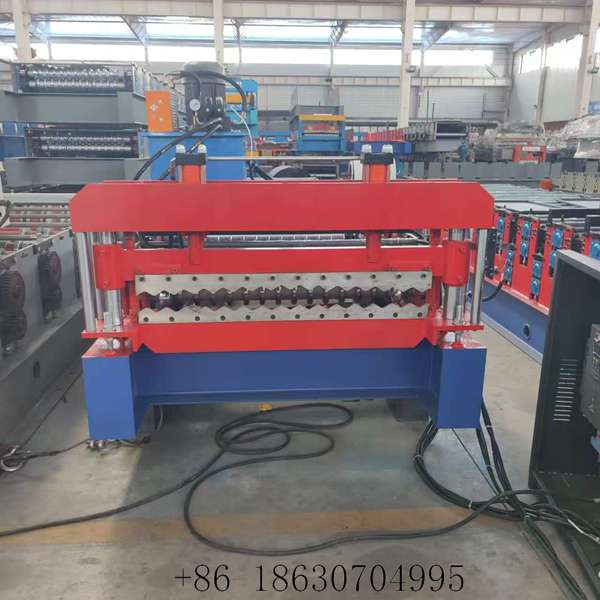

| Cutting method | Automatic hydraulic shear |
| Customization | Wave profile, sheet thickness, line speed, voltage |
| Warranty | 1 year |
