Delivery time: 15 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

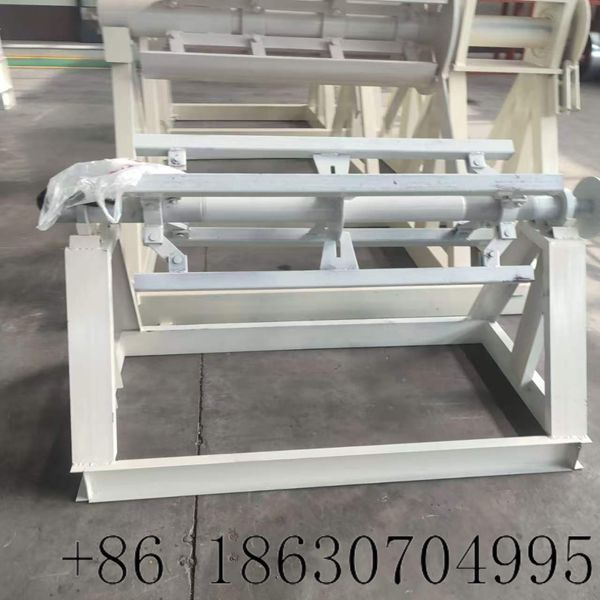

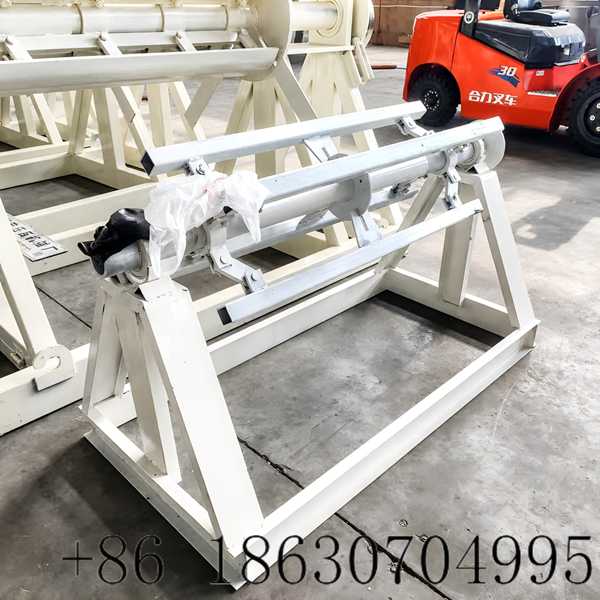

Hebei Xinnuo Roll Forming Machinery Co., Ltd. (XINNUO) is a professional cold roll forming equipment manufacturer with more than 30 years of experience. From our factory base in Botou, Hebei Province, our coil handling and forming machines have been exported to more than 140 countries and regions. This page introduces our manual steel coil decoiler, a cost-effective coil feeding solution for workshops that run roof sheet machines, purlin lines, and profile forming equipment. With a 5-ton loading capacity and simple manual operation, it delivers reliable coil support day after day, without any power supply requirements.

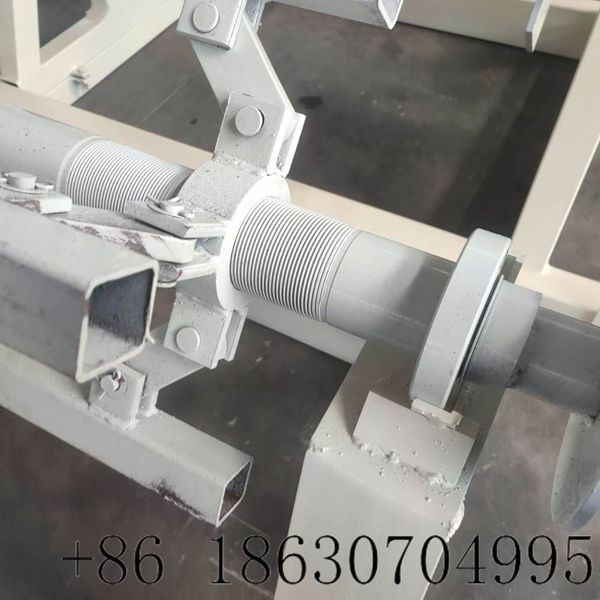

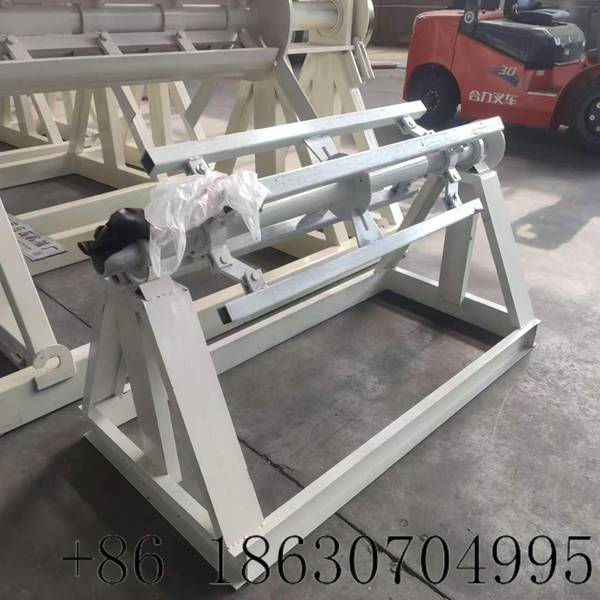

Designed for stable support of steel coils during roll forming production, the decoiler is available with different loading capacities to meet various metal processing requirements. The heavy-duty steel structure is built with a strong welded frame for excellent stability, suitable for long-term industrial operation under demanding working conditions. It holds the coil firmly and keeps rotation smooth, so the strip feeds into the forming machine evenly and continuously.
Operation is refreshingly simple. The manual steel coil decoiler uses a mechanical expanding structure without any motor or hydraulic system, which means easy operation, low energy consumption, and reduced maintenance costs. It is an ideal choice for workshops in areas with limited or unstable power supply — the decoiler keeps working no matter what.

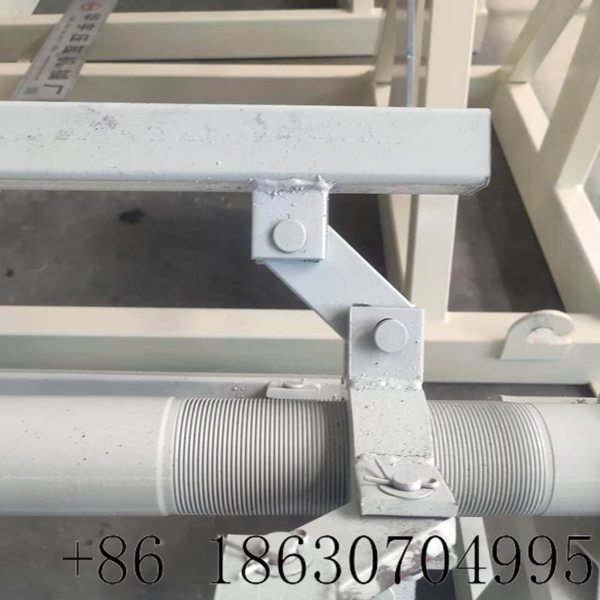

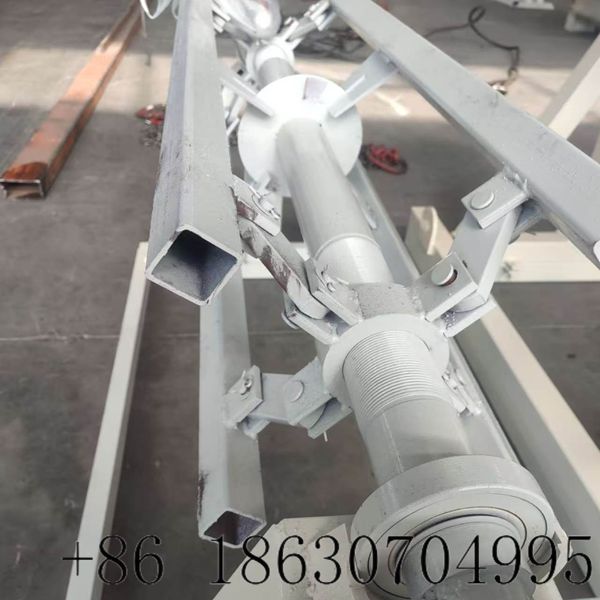

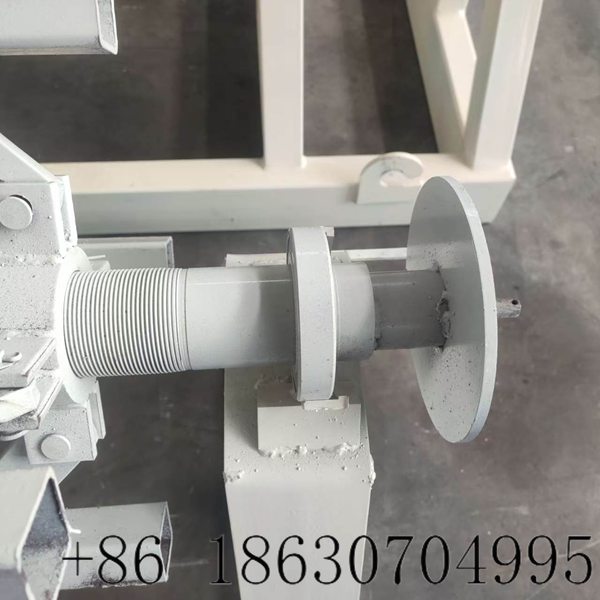

Stable material feeding is ensured by a smooth, continuous coil unwinding action that helps improve sheet forming accuracy and reduces material feeding deviation. The adjustable coil expansion system allows the mandrel to be adjusted according to different coil inner diameters, providing reliable coil holding and smooth rotation during production across a wide range of coil sizes.
As a complete roll forming equipment supplier, XINNUO also offers the full Roll Forming Machine collection and Purlin Roll Forming Machine ranges that pair perfectly with our decoilers. Every machine is factory-tested before delivery, with installation guidance, operator training, and long-term spare parts support. Tell us your coil weight, inner diameter, and line speed — our engineers will recommend the right configuration for your production line.
| Parameter | Specification |
|---|---|
| Model | 5T Manual Steel Coil Decoiler |
| Maximum loading capacity | 5 tons |
| Coil inner diameter (mandrel) | 470 – 530 mm (adjustable expansion) |
| Maximum coil outer diameter | 1,200 mm (approx.) |
| Maximum coil width | 600 mm (approx., adjustable) |
| Expansion type | Manual mechanical expansion |
| Power consumption | None (manual operation) |
| Braking | Mechanical brake |
| Main frame | Heavy-duty welded high-strength steel |
| Suitable material | Color-coated steel / galvanized steel / aluminum coil |
| Typical application | Roof sheet, purlin, and profile roll forming lines |
| Machine weight (approx.) | 0.6 t |
Swipe horizontally to view full parameters.
