Delivery time: 25 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

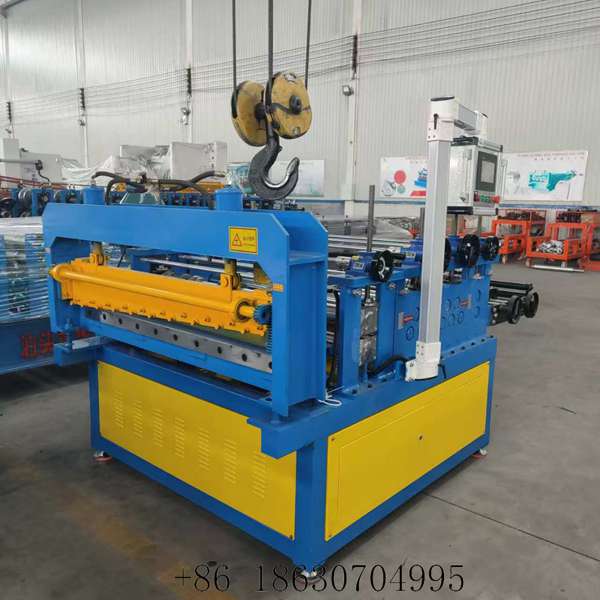

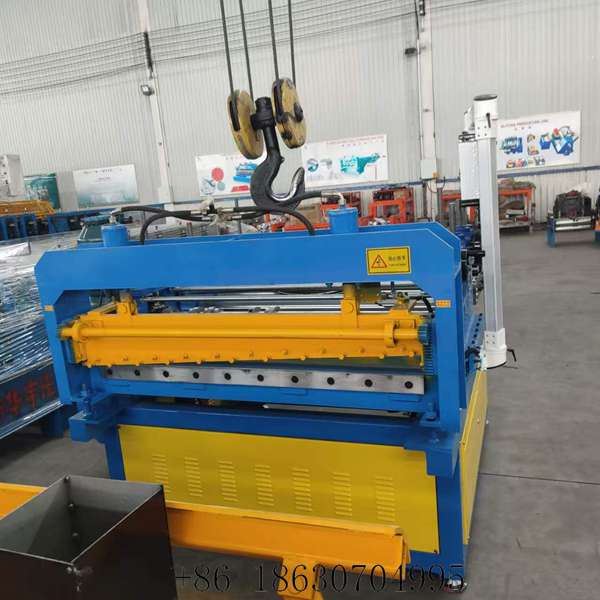

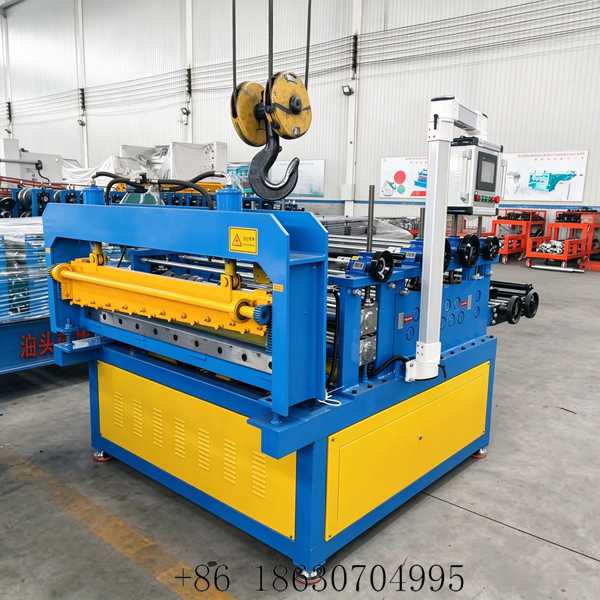

Our Leveling Slitting Cutting Machine is a 3-in-1 integrated production line independently developed by Hebei Xinnuo Roll Forming Machinery Co., Ltd. It integrates coil leveling, longitudinal slitting and cut-to-length cutting functions, removing the requirement for separate standalone processing machines. Raw steel coils can be processed continuously into finished flat sheets with accurate width and length in one pass. This all-in-one design saves workshop floor space, lowers total equipment investment, and greatly reduces manual work for secondary material handling. You can pair this machine with our C/Z Purlin Roll Forming Machine or Roof Panel Roll Forming Machine for a complete metal forming production solution.
Precision Leveling System for Perfectly Flat Sheets

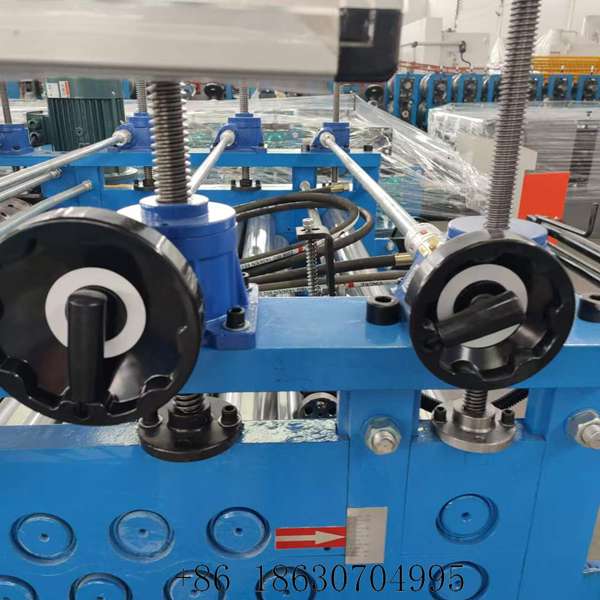

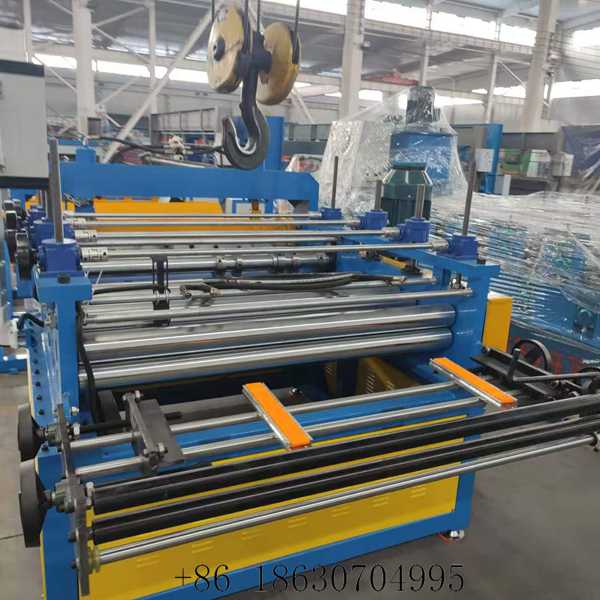

Equipped with a heavy-duty roller leveling unit featuring 17-21 precision-ground work rollers (made from 45# forged steel with hard chrome plating), the machine effectively eliminates coil curvature, crossbow, and edge wave defects. The leveling gap is adjustable via a handwheel or motorized system, ensuring sheets achieve a flatness tolerance of ≤2mm/m, which is critical for downstream roll forming processes that require perfectly flat material input.
High-Precision Slitting for Consistent Width Accuracy

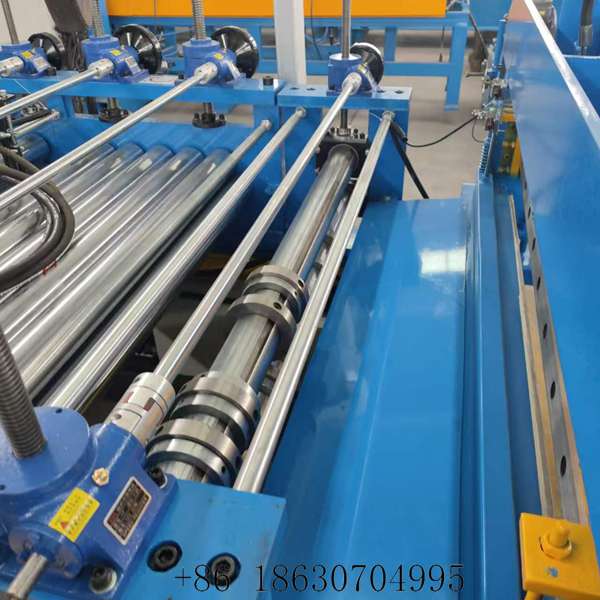

The slitting unit uses paired Cr12MoV tool steel circular blades heat-treated to HRC 58-62 hardness, mounted on precision-machined shafts with adjustable spacer rings. It delivers clean, burr-free slits with a width tolerance of only ±0.5mm, allowing you to split wide coils into multiple narrow strips simultaneously to meet diverse customer width requirements without edge deformation or material waste.
Heavy-Duty Frame for Stable High-Volume Production

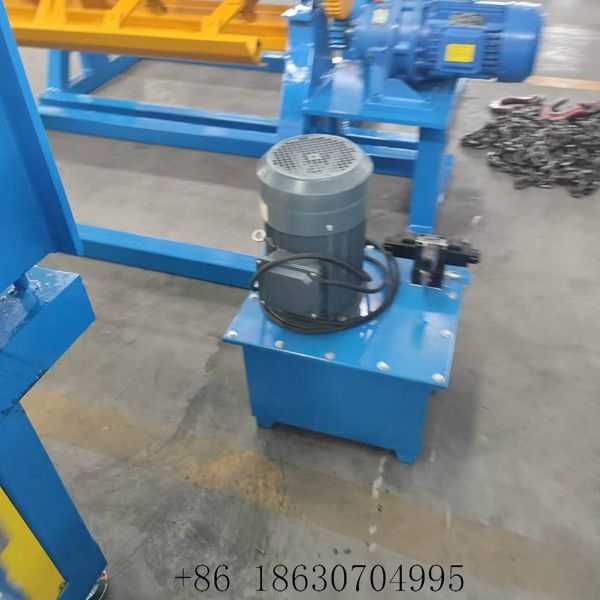

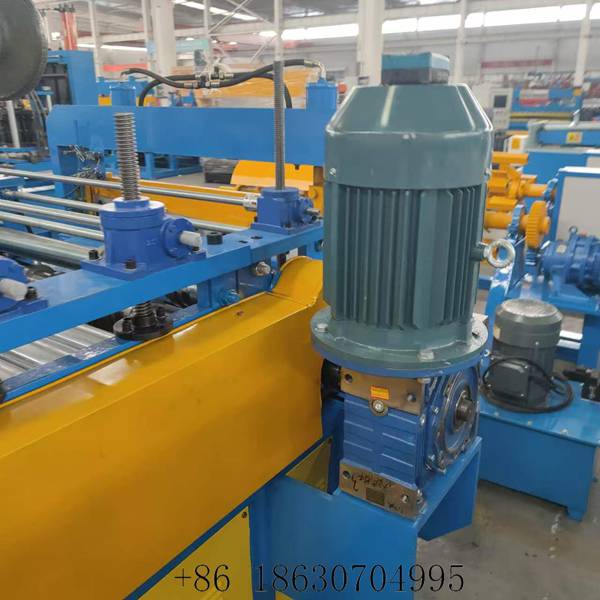

The whole machine adopts thickened welded steel frame structure, strong rigidity and anti-deformation. It supports long-time continuous heavy load operation, suitable for high-volume metal coil processing in metal workshop, steel distribution center and metal component factory. The hydraulic drive system runs smoothly with low noise, stable cutting action and long service life.
Swipe horizontally to view full parameters.
| Item | Parameter |
|---|---|
| Machine Name | Leveling Slitting Cutting Machine |
| Processing Material | GI, PPGI, Carbon Steel Coil |
| Leveling Rollers | 17-21 pcs, 45# forged steel hard chrome plated |
| Slitting Blade Material | Cr12MoV, HRC 58-62 |
| Flatness Tolerance | ≤2 mm/m |
| Slitting Width Tolerance | ±0.5 mm |
| Frame Structure | Heavy welded steel frame |

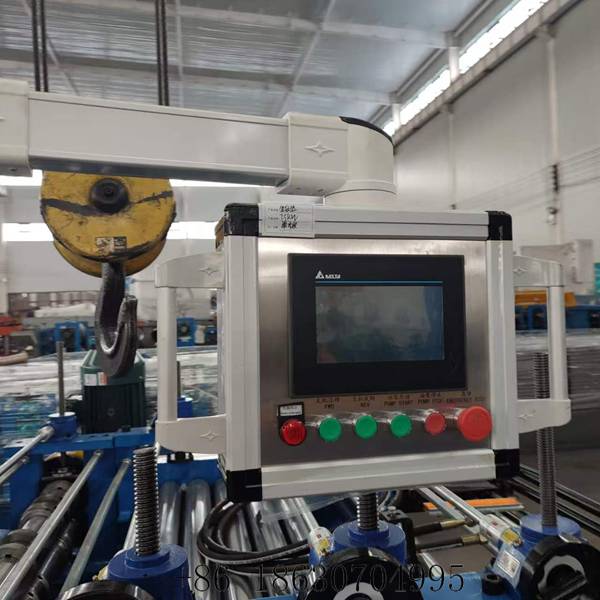

| Drive Type | Hydraulic + PLC control |
