Dual-Station High-Efficiency Steel Coil Uncoiling System for Continuous Production Lines

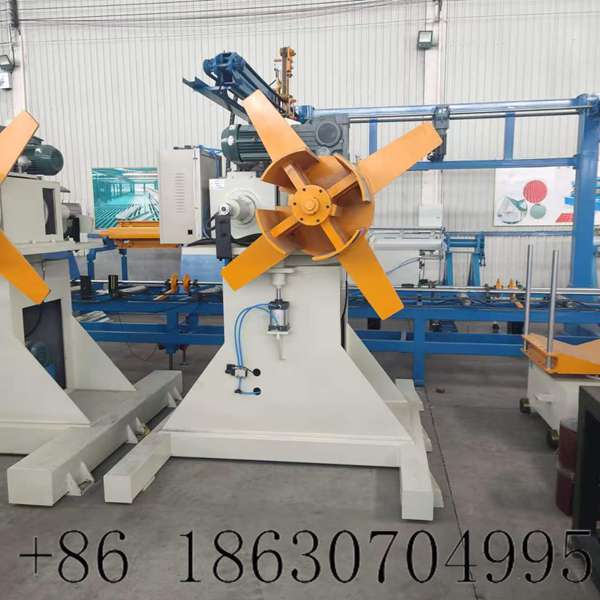

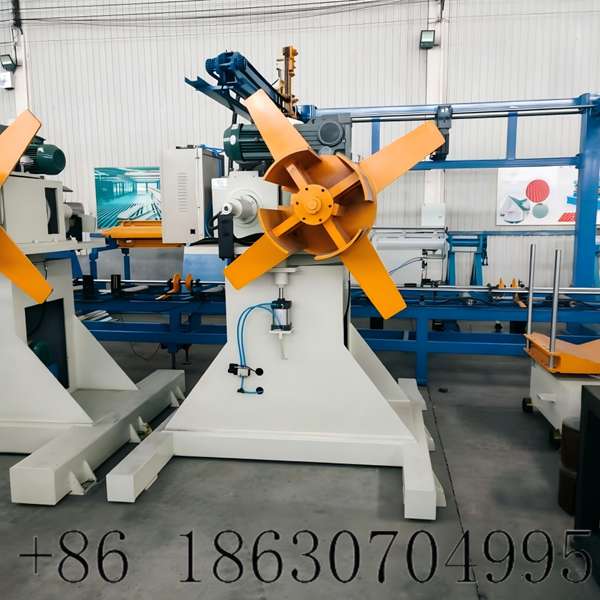

Double Head Hydraulic Decoiler - Machine Main Body

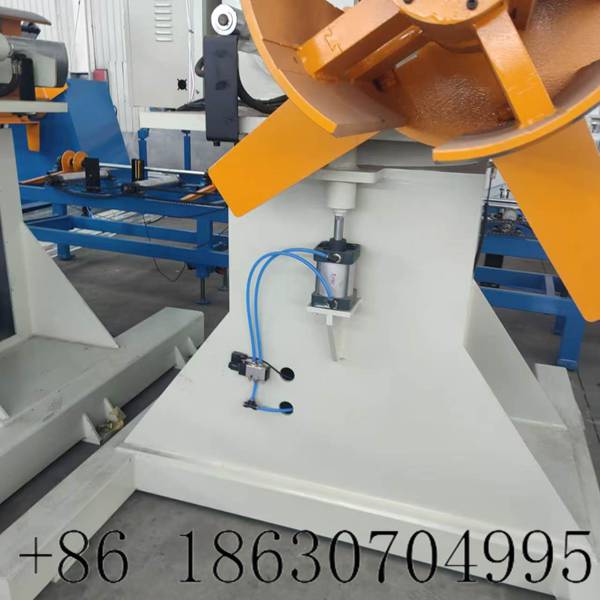

Precision Guide Pillar Assembly

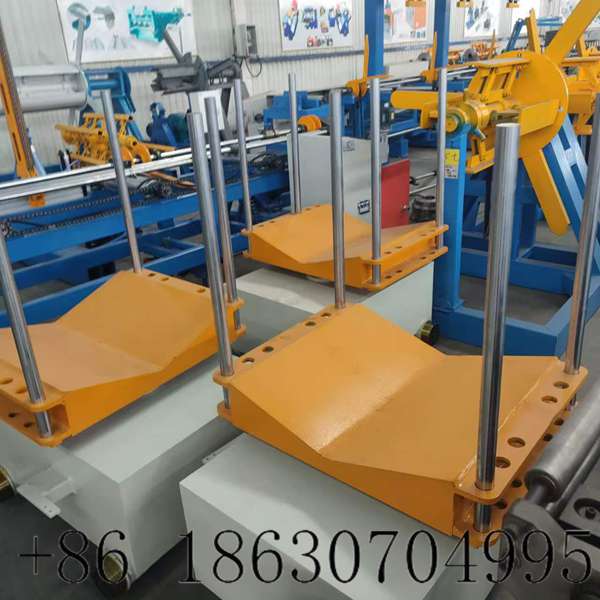

Hydraulic Coil Loading Cart System
The double head hydraulic decoiler manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd. is an advanced material handling solution engineered to maximize productivity in modern metal processing operations. This innovative dual-station uncoiler represents a significant advancement over traditional single-head designs, specifically addressing the costly production downtime associated with coil changeovers in high-volume manufacturing environments.
Built with heavy-duty industrial construction and premium hydraulic components, our double head hydraulic decoiler delivers reliable performance for steel coils weighing from 5 tons up to 16 tons. The hydraulic expansion mandrel system ensures rapid, secure coil installation with precise centering accuracy, while the variable-speed motorized drive provides smooth, controlled unwinding that seamlessly integrates with roll forming lines, stamping presses, and slitting operations.
⚡ Core Advantage: Zero Production Interruption
Featuring two independent material stations operating in alternating sequence, while one mandrel actively feeds material into your production line, the second station can be fully prepped with a new coil and ready for immediate activation. The transition between coils occurs without requiring line stoppage, eliminating traditional changeover downtime entirely. This dual-station alternating operation dramatically improves production line continuity and significantly increases overall output capacity for your operation.

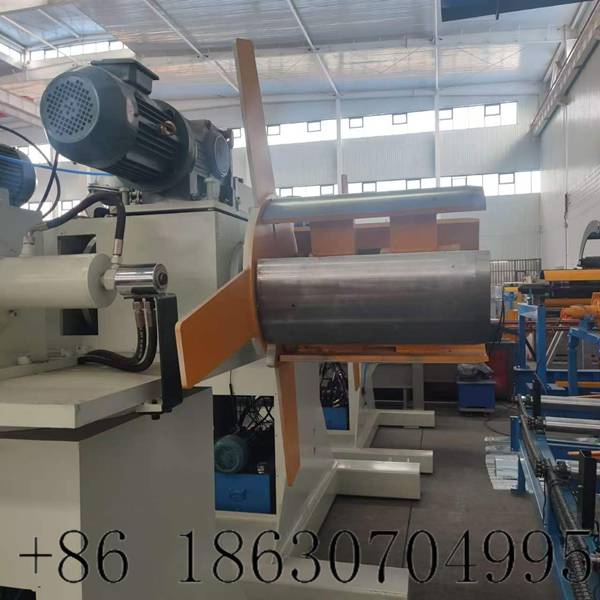

Hydraulic Expansion Mandrel Core

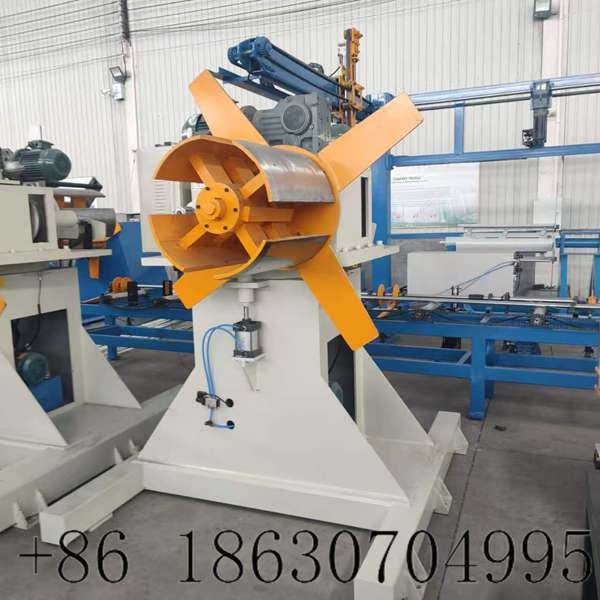

Complete Machine Structure Overview
| Parameter | Specification Details |
|---|---|
| Model Number | XND-DH5T / XND-DH8T / XND-DH10T / XND-DH15T |
| Maximum Coil Weight | 5T / 8T / 10T / 15T (Customizable up to 20T) |
| Coil Width Range | 100mm - 1500mm |
| Coil Inner Diameter | φ450mm - φ530mm (Standard φ508mm) |
| Maximum Coil Outer Diameter | φ1800mm |
| Decoiling Speed | 0-30m/min (Adjustable via frequency inverter) |
| Expansion Method | Hydraulic Automatic Expansion |
| Drive System | Motorized with Frequency Inverter Speed Control |
| Hydraulic System Pressure | 16MPa |
| Main Motor Power | 3kW - 7.5kW (Depending on model specification) |
| Hydraulic Pump Power | 3kW - 5.5kW |
| Number of Working Stations | Double Head (Dual-Station Alternating) |
| Coil Loading Method | Hydraulic Loading Cart (Standard Configuration) |
| Overall Dimensions (L×W×H) | 3800×2200×1800mm (10T Standard Model) |
| Total Machine Weight | Approximately 3500kg - 6500kg |
| Applicable Materials | GI, PPGI, Aluminum, Stainless Steel, Cold Rolled Steel |
| Warranty Period | 12 Months with Lifetime Technical Support |
Hebei Xinnuo's double head hydraulic decoiler is widely utilized across various metal processing industries including roll forming production lines, high-speed stamping operations, tube and pipe manufacturing, slitting lines, and automated sheet metal processing systems. It delivers exceptional value for high-volume production facilities where minimizing downtime and maximizing throughput are critical operational priorities.
