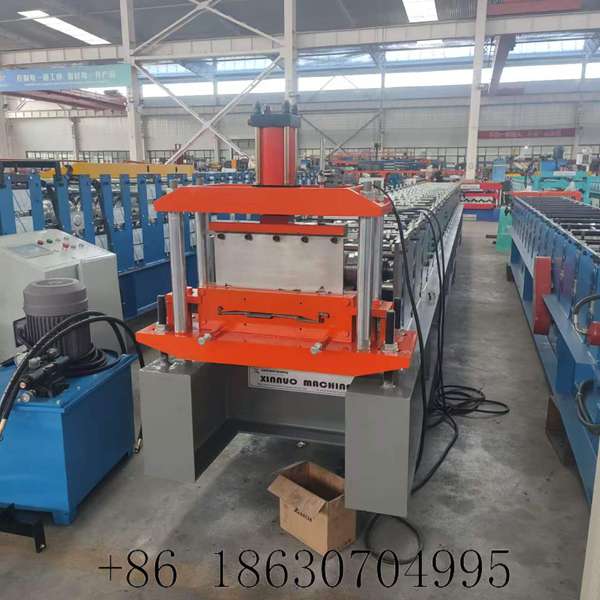

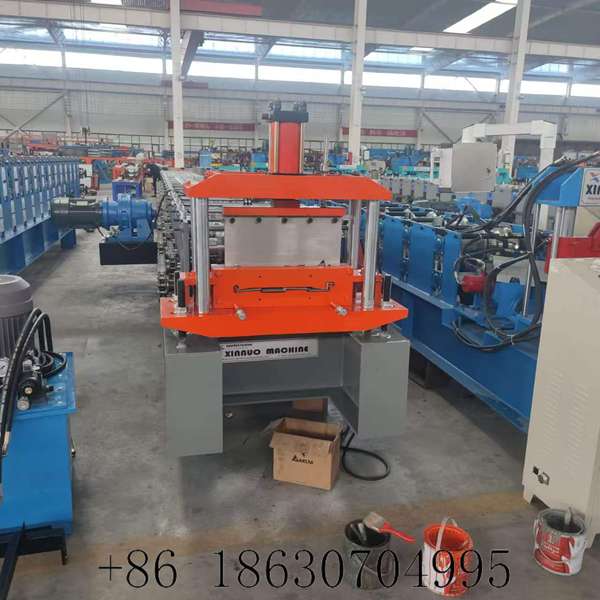

The 373 Wall Panel Roll Forming Machine from Hebei Xinnuo is a high-precision, fully automated solution designed for manufacturing hidden-fastener wall panels widely used in modern architectural cladding. Built with 30+ years of cold-forming expertise, this equipment delivers consistent, durable panels with clean, seamless installation.

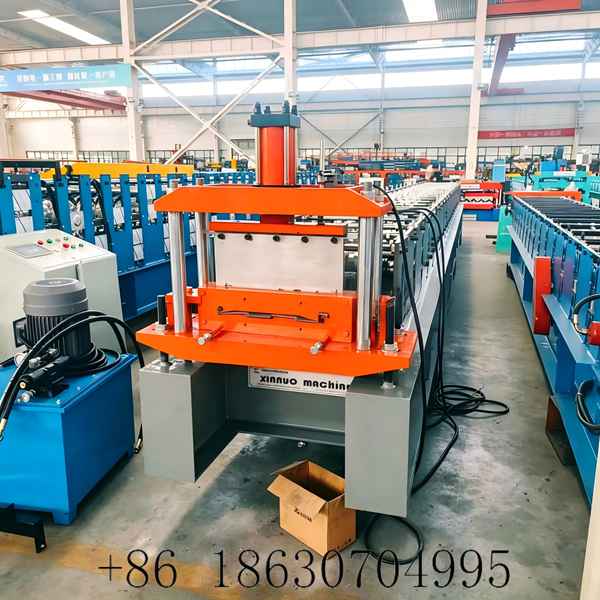

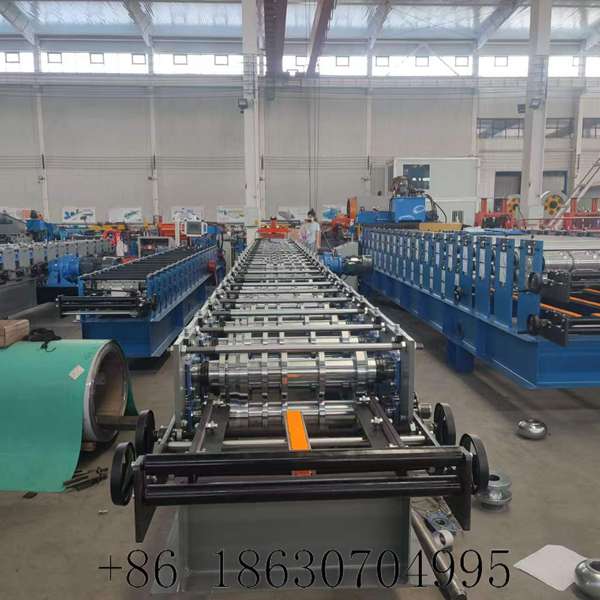

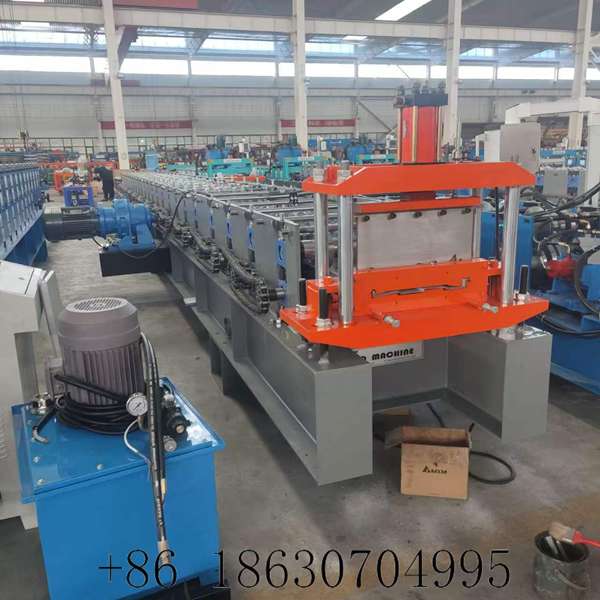

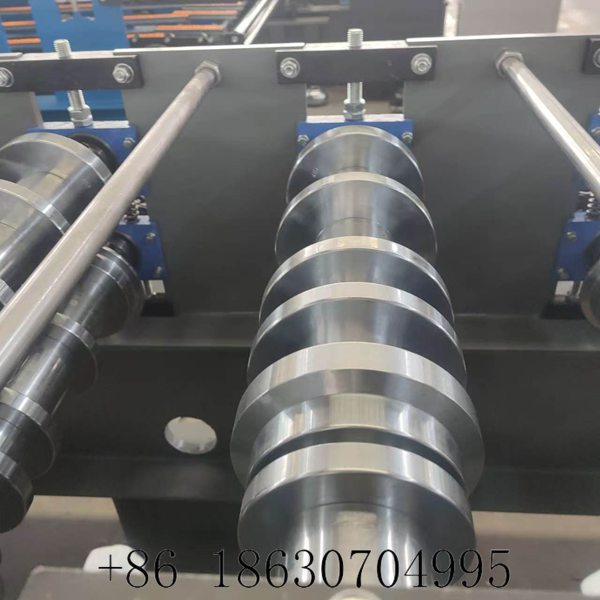

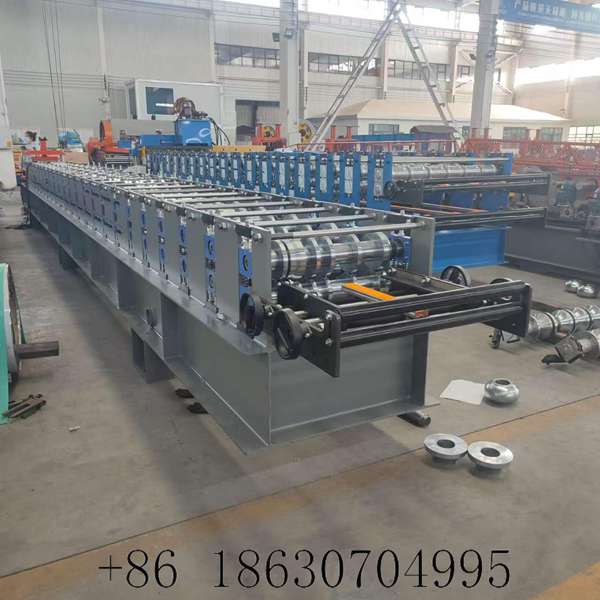

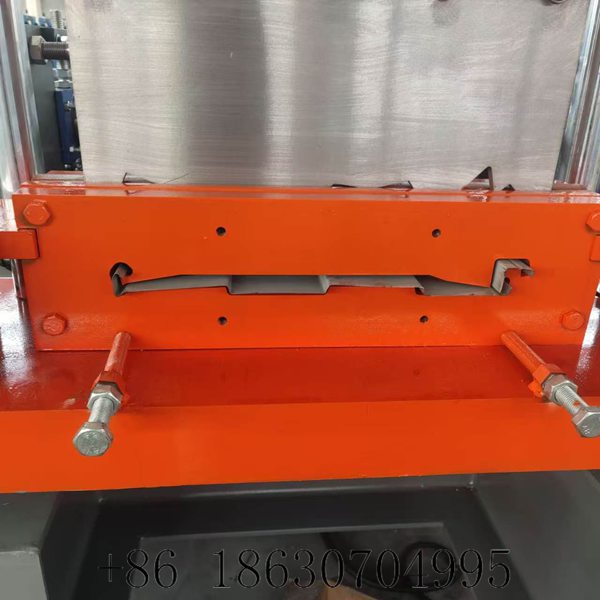

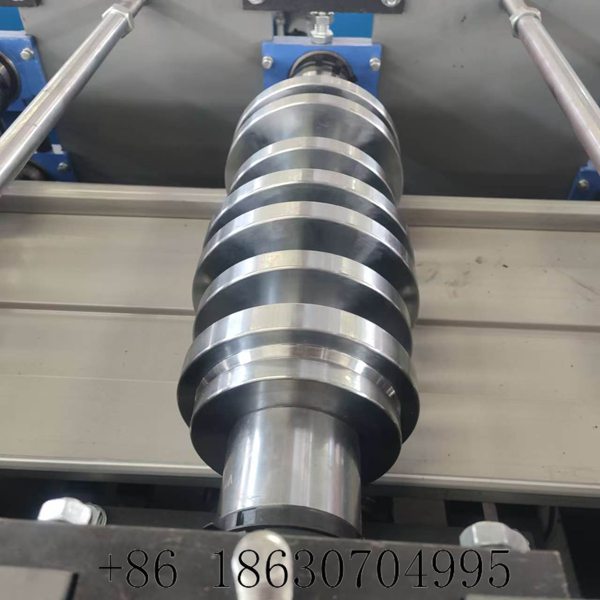

Featuring a 22-station forming system with 45# steel rollers hard-chrome plated, the machine processes materials from 0.25–0.8mm thick, producing 373mm-wide wall panels with a 50mm arc height. It adopts PLC control and hydraulic shearing with Cr12MoV blades, ensuring ±0.3mm dimensional accuracy and smooth, burr-free cuts.

With a total power of 11.5kW and a forming speed of 8–12m/min, the line balances high productivity with low maintenance needs. The heavy-duty 350H steel base guarantees long-term stability under continuous operation.

Ideal for commercial buildings, warehouses, and industrial facilities, the 373 wall panel system eliminates exposed fasteners, enhancing both aesthetics and weather resistance. Customizable length options and easy operation make it a reliable choice for both small-scale workshops and large production plants.
