Delivery time: 45 working days.
Payment method: TT, 40% deposit, and the remaining balance shall be paid before delivery.
Warranty period: one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.

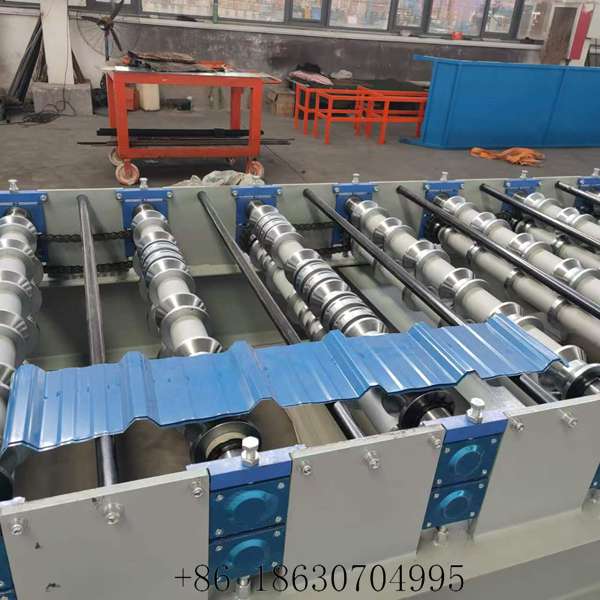

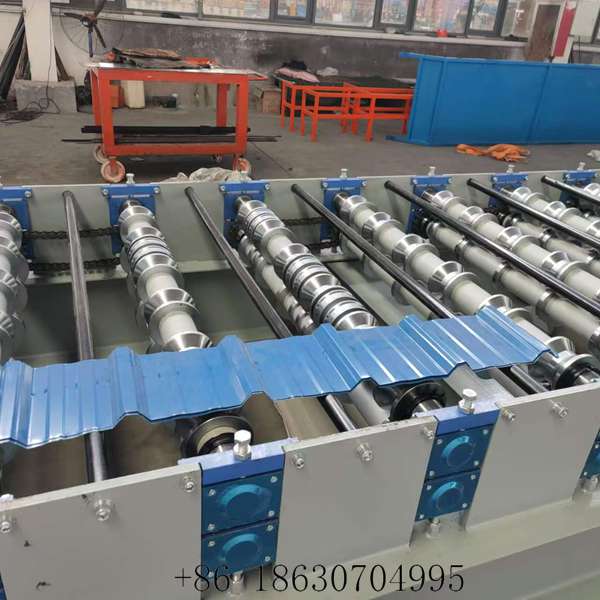

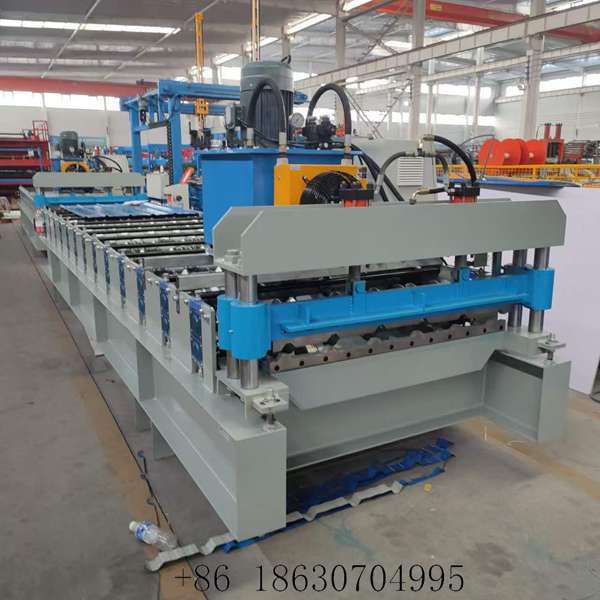

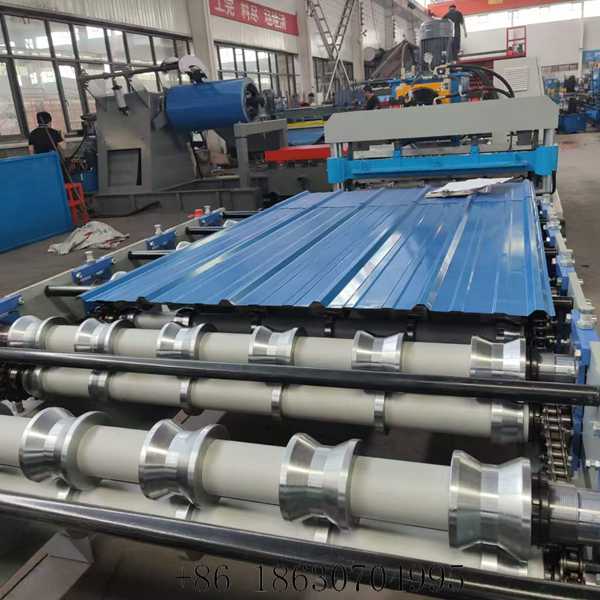

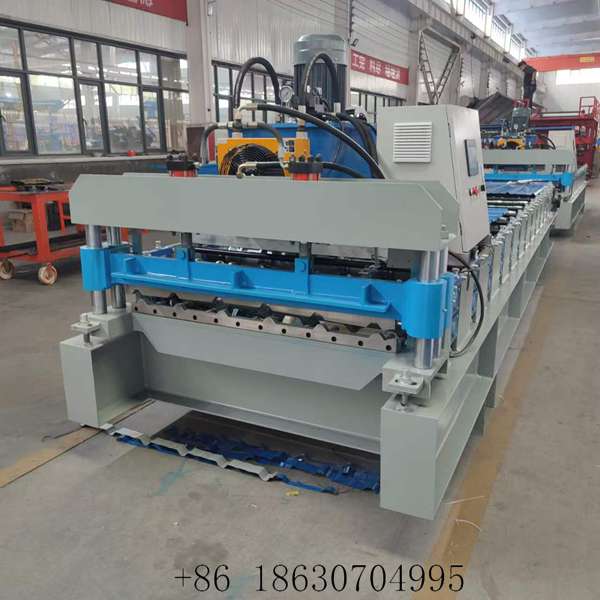

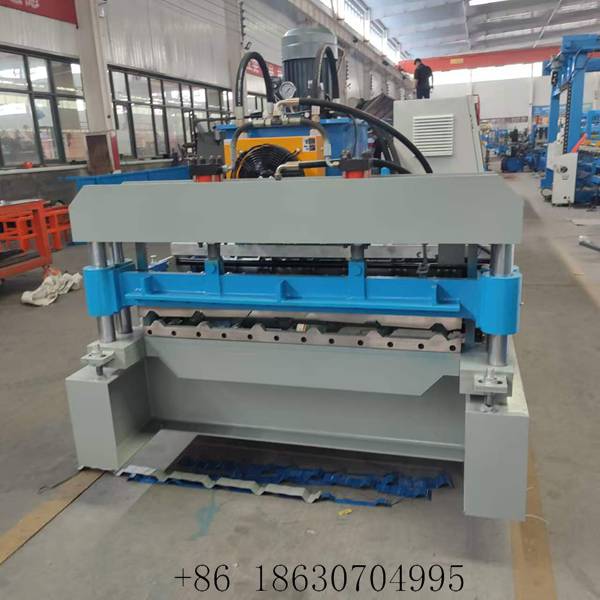

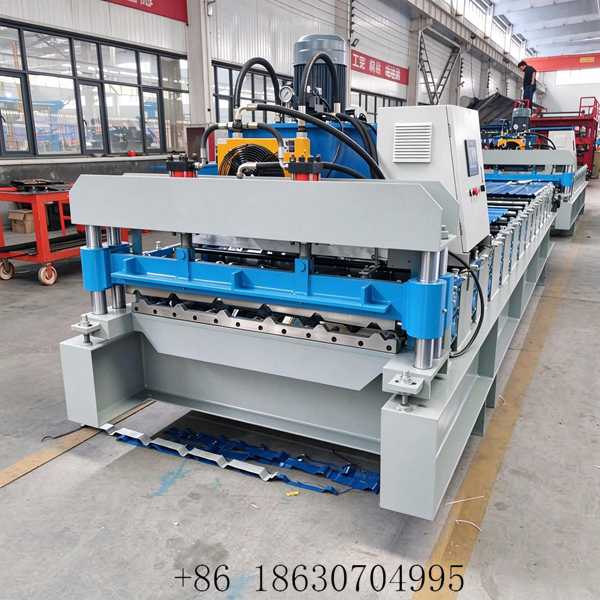

The 1025 Trapezoidal Roof Panel Machine manufactured by Hebei Xinnuo Roll Forming Machinery produces trapezoidal metal roof sheets with an effective coverage width of 1025mm, formed from 1200mm raw coil. It delivers an economical and efficient covering solution that greatly cuts overall project costs. Compared with conventional narrow roof profiles, this panel features larger coverage area per sheet, reducing overlapping joints during roof installation. It speeds up large-area construction and saves raw material and labor expenses, bringing outstanding cost performance for roofing contractors. C Z Purlin Roll Forming Machine
Optimized trapezoidal wave profile balances high load capacity and structural stability. The panel adopts 205mm medium-wide pitch with 25mm / 28mm rib height. This trapezoidal cross-section improves section moment of inertia and bending resistance while maintaining local sheet stability. It performs reliably under snow and wind loads commonly seen in industrial workshops and logistics warehouses. The design allows wider purlin spacing and reduces steel structure investment for end customers.
This roll former supports multiple substrate and coating options to fit climate zones worldwide. Compatible materials include PPGI, PPGL, aluminum sheet and aluminum-magnesium-manganese alloy, with customizable thickness from 0.3mm to 1.2mm. Available coatings cover PE, SMP, HDP and PVDF systems. For normal inland environments or harsh high-corrosion, strong UV areas, the finished panels can keep good weather resistance and color retention for 20 to 35 years. Downspout Roll Forming Machine
Swipe horizontally to view full parameters.
| Item | Specification |
|---|---|
| Product profile | 1025 trapezoidal roof panel |
| Effective coverage width | 1025 mm |
| Raw material width | 1200 mm coil |
| Wave pitch | 205 mm |
| Wave height | 25 mm / 28 mm optional |
| Material thickness range | 0.3 mm – 1.2 mm |
| Supported substrates | PPGI, PPGL, aluminum, Al-Mg-Mn alloy |
| Coating options | PE, SMP, HDP, PVDF |
| Application | Factory, warehouse, metal building roofing |
Hebei Xinnuo Roll Forming Machine Company, a professional roll forming machine factory, has 29 years of experience, 100,000㎡ factory and 19 patents. We provide CE/ISO certified equipment, 18-month warranty, 24/7 after-sales service, and fast delivery to 141+ countries.
